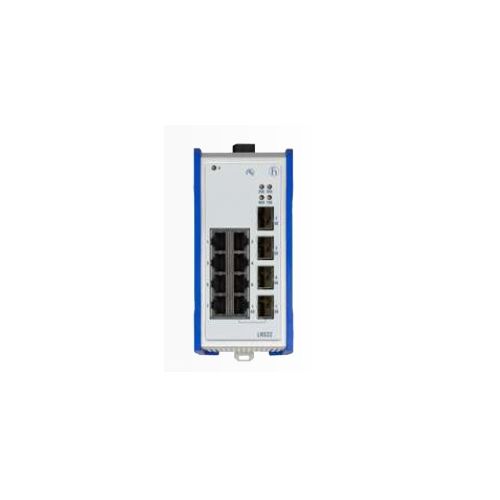

942328005 | LRS307TX3SFP1C | Industrial Ethernet
LEMUR Lite Managed Industrial ETHERNET Rail-Switch, Ethernet/Fast-Ethernet/Full-Gigabit-Ethernet Switch with Gigabit Uplink, 11 Ethernet Ports
| Complete Electronics Part No. | 942328005 |
|---|---|
| Manufacturers Part No. | 942 328 005 |
| Ethernet Product Type: | Lite Managed Switch |
| Total 10/100 (RJ45) Ports: | 7 |
| Total 100/1000 (FX) Ports: | 3 |
| Number of Combo Ports: | 1 |
| Total Ethernet Ports: | 11 |
| Operating Voltage: | DC 9.6V - 32V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
LRS307TX3SFP1C
Lite Managed Industrial Ethernet Rail-Switch
- Ethernet / Fast-Ethernet / Gigabit Switch
- Fanless design.
- 7 x 10/100BASE-TX Twisted Pair Cable, RJ45 sockets
- 3 x 100/1000 base
- 1 x Combo Port 10/100/1000 base TX and 100/1000 base FX SFP
- Store and Forward Switching Mode,
- Operating voltage: DC 9.6 V - 32 V (24 VDC)
- Operating temperature: -40ºC ... 60ºC
- PSU Connector: 1 x Plug in terminal block - 6 pin
- LED's: Power, port state, PoE
- Time Synchronization: NTP Client
- Ingress Protection: IP 30
- W 68mm x H 135mm x D 118mm
- Weight: 680g
- Order Number: 942 328-005
- Warranty: 5 Years Standard
- Approvals: cUL 61010-1, UL61010-1/-2-201**
- Accessories to order separately: SFP Transceiver, Rail Power Supply
