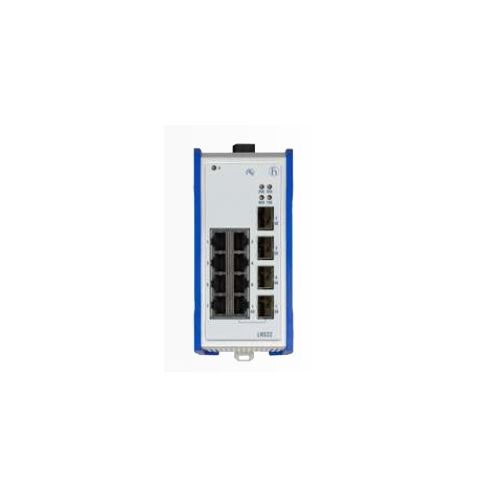

942328004 | LRS427TX3SFP1C | Industrial Ethernet

LEMUR Lite Managed Industrial ETHERNET Rail-Switch, Ethernet/Fast-Ethernet/Full-Gigabit-Ethernet Switch with Gigabit Uplink, PoE on 8 Ports

More Information
Complete Electronics Part No. 942328004
Manufacturers Part No. 942 328 004
Ethernet Product Type: Lite Managed Switch
Total 10/100 (RJ45) Ports: 7
Total 100/1000 (FX) Ports: 3
Number Of PoE Ports: 8
Number of Combo Ports: 1
Total Ethernet Ports: 11
Operating Voltage: DC 48V - 54V
Mounting: DIN Rail
IP Rating: IP30
Description

LRS427TX3SFP1C

Lite Managed Industrial Ethernet Rail-Switch

  • Ethernet / Fast-Ethernet / Gigabit Switch
  • Fanless design.
  • 7 x 10/100BASE-TX Twisted Pair Cable, RJ45 sockets
  • 3 x 100/1000 base
  • 1 x Combo Port 10/100/1000 base TX and 100/1000 base FX SFP
  • PoE on 8 x TX Ports
  • PoE Budget: max 180 W
  • Store and Forward Switching Mode,
  • Operating voltage: 48 VDC (PoE) / 54 VDC (PoE+)
  • Operating temperature: -40ºC ... 60ºC
  • PSU Connector: 1 x Plug in terminal block - 6 pin
  • LED's: Power, port state, PoE
  • Time Synchronization: NTP Client
  • Ingress Protection: IP 30
  • W 68mm x H 135mm x D 118mm
  • Weight: 720g
  • Order Number: 942 328-004
  • Warranty: 5 Years Standard
  • Approvals: cUL 61010-1, UL61010-1/-2-201**
  • Accessories to order separately: SFP Transceiver, Rail Power Supply
