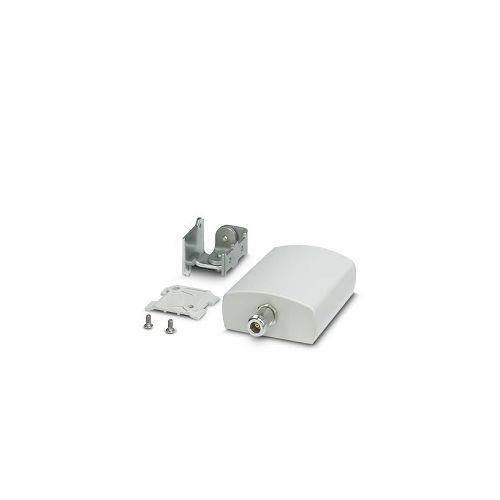

ANT-DIR-868-01 | 2702137 | Antenna
Directional antenna, 868 MHz, gain: 3.5 dBi, IP67, seawater-resistant, N (female), incl. mounting bracket and mast clips, ATEX and IECEx approval
| Complete Electronics Part No. | 2702137 |
|---|---|
| Manufacturers Part No. | 2702137 |
| Ethernet Product Type: | Antenna |
Description
Antenna - ANT-DIR-868-01
- Directional antenna
- For use in potentially explosive areas
- Salt water resistant
- For applications in reflective environments
- For stationary or linear mobile applications
- For point-to-point connections
- Frequency 868 MHz
- Impedance: 50 Ω
- Gain 3.5 dBi
- Polarization: Circular
- Opening angle: h/v 135°/90°
- Connection method: N (female)
- Ingress Protection: IP67
- Seawater-resistant
- Antenna housing: Lexan EXL 9330
- Bracket: V2A
- Mast Clamp V2A
- Width: 80 mm
- Height: 101 mm
- Length: 35 mm
- Operating Temperature: -40°C ... 75°C
- Weight per Piece (excluding packing): 519.2 g
- Part Number 2702137
- Customs tariff number: 85177100
- Country of origin: PL
