ANT-OMNI-868-01 | 2702136 | Antenna
Omnidirectional antenna, 868 MHz, gain: 4 dBi, polarization: linear, opening angle: h/v 360°/30°, degree of protection: IP67, seawater-resistant
| Complete Electronics Part No. | 2702136 |
|---|---|
| Manufacturers Part No. | 2702136 |
| Ethernet Product Type: | Antenna |
Description
Antenna - ANT-OMNI-868-01

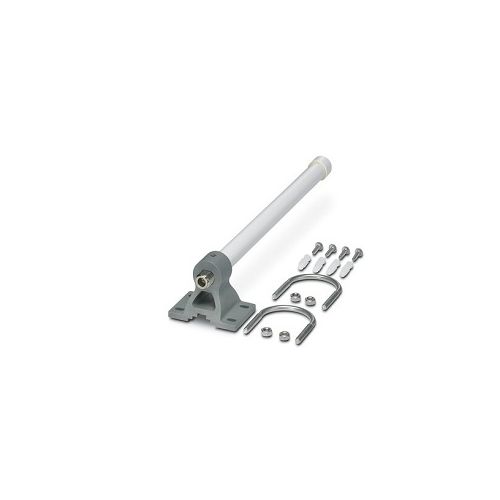

- Omnidirectional antenna incl. mounting bracket and mast clip
- Frequency 868 MHz
- Gain 4dBi
- Polarization: linear
- Opening angle: h/v 360°/30°
- Ingress Protection: IP67
- Seawater Resistant
- Connection method: N type (female)
- Impedance: 50 Ω
- For use in potentially explosive areas
- For medium distances
- For freely mobile applications
- Maximun Capacity: 15.00 W
- Fiberglass-reinforced plastic (Antenna housing)
- Bracket material: Fiberglass reinforced plastic
- U shaped screw: V2A
- Height: 620 mm
- Diameter 20 mm
- ATEX and IECEx approval
- Operating Temperature: -40°C ... 75°C
- Wall/Mast mount
- Weight per Piece (excluding packing): 285 g
- Part Number 2702136
- Customs tariff number: 85177100
- Country of origin: TW
