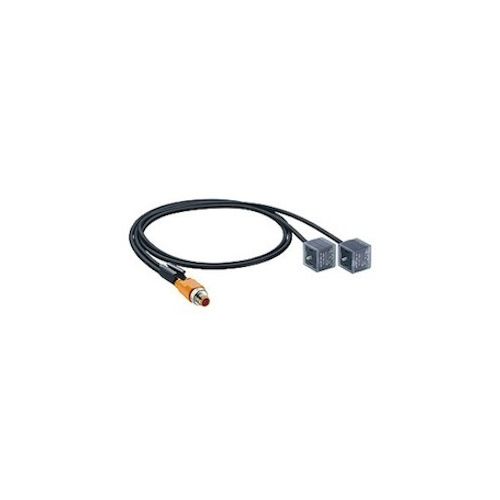

ASB 2-VAD 1A-1-3-226/1,5 M | 43787 | Cordset

Actuator/Sensor Cordset, Double ended, M12 DUO male to two valve connectors, 1.5m
More Information
Complete Electronics Part No. 43787
Manufacturers Part No. 43787
Type: Cordset
Cordset Type: Double Ended
Cordset Gender M12: M12 Duo Male - 2x Valve Connectors
Coded Option (Circular) A
Cable Entry: Straight - Right Angled
Number of poles 5
Valve Connector Form A
Rated Voltage: 32V
Rated Current: 4A at 40°C
Cable Length: 1.5 Metres
Cable Jacket: PUR
IP Rating: IP67
Description

ASB 2-VAD 1A-1-3-226/1,5 M

Actuator/Sensor Cordset, Double ended

  • M12 Duo male connector with self-locking threaded joint
  • To
  • Two valve connectors according to DIN EN 175301 803
  • Form A
  • Cable exit 0° and 180°
  • 5 Pole
  • 1.5 Metre
  • PUR jacket
  • Halogen free
  • Black
