Low Frequency Halogen Free Cable
Data Transmission Cable
- Fine wire / multi wire
- Low Smoke
- Zero Halogen
- Approvals: Based on VDE 0812
Lapp Cable Series:-
- Unitronic Robust
- Unitronic Robust C
- Unitronic Robust C (TP)
- Unitronic LiHH
- Unitronic LiHCH
- Unitronic LiHCH (TP)
- The shown product values are nominal values
- Photographs and graphics are not to scale
- Photographs may not represent detailed images of the respective products
-

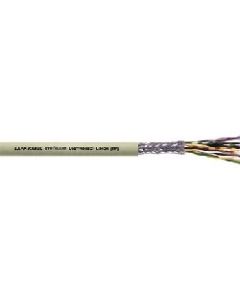

0038404 | UNITRONIC LiHCH (TP) 4X2X0,25 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 4 x 2, Conductor Diameter: 0.25mm², Outer Cable Diameter: 7.8mm -
0038406 | UNITRONIC LiHCH (TP) 6X2X0,25 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 6 x 2, Conductor Diameter: 0.25mm², Outer Cable Diameter: 8.7mm
-
0038408 | UNITRONIC LiHCH (TP) 8X2X0,25 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 8 x 2, Conductor Diameter: 0.25mm², Outer Cable Diameter: 10.5mm
-
0038412 | UNITRONIC LiHCH (TP) 12X2X0,25 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 12 x 2, Conductor Diameter: 0.25mm², Outer Cable Diameter: 11.5mm
-
0038416 | UNITRONIC LiHCH (TP) 16X2X0,25 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 16 x 2, Conductor Diameter: 0.25mm², Outer Cable Diameter: 12.7mm
-
0038602 | UNITRONIC LiHCH (TP) 2X2X0,5 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 2 x 2, Conductor Diameter: 0.5mm², Outer Cable Diameter: 8.1mm
-
0038603 | UNITRONIC LiHCH (TP) 3X2X0,5 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 3 x 2, Conductor Diameter: 0.5mm², Outer Cable Diameter: 8.9mm
-
0038604 | UNITRONIC LiHCH (TP) 4X2X0,5 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 4 x 2, Conductor Diameter: 0.5mm², Outer Cable Diameter: 9.6mm
-
0038606 | UNITRONIC LiHCH (TP) 6X2X0,5 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 6 x 2, Conductor Diameter: 0.5mm², Outer Cable Diameter: 11.3mm
-
0038608 | UNITRONIC LiHCH (TP) 8X2X0,5 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 8 x 2, Conductor Diameter: 0.5mm², Outer Cable Diameter: 13.3mm
-
0038612 | UNITRONIC LiHCH (TP) 12X2X0,5 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 12 x 2, Conductor Diameter: 0.5mm², Outer Cable Diameter: 15.1mm
-
0038616 | UNITRONIC LiHCH (TP) 16X2X0,5 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 16 x 2, Conductor Diameter: 0.5mm², Outer Cable Diameter: 16.7mm
