Low Frequency Halogen Free Cable
Data Transmission Cable
- Fine wire / multi wire
- Low Smoke
- Zero Halogen
- Approvals: Based on VDE 0812
Lapp Cable Series:-
- Unitronic Robust
- Unitronic Robust C
- Unitronic Robust C (TP)
- Unitronic LiHH
- Unitronic LiHCH
- Unitronic LiHCH (TP)
- The shown product values are nominal values
- Photographs and graphics are not to scale
- Photographs may not represent detailed images of the respective products
-
0038702 | UNITRONIC LiHCH (TP) 2X2X0,75 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 2 x 2, Conductor Diameter: 0.75mm², Outer Cable Diameter: 8.7mm -
0038704 | UNITRONIC LiHCH (TP) 4X2X0,75 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 4 x 2, Conductor Diameter: 0.75mm², Outer Cable Diameter: 10.9mm
-
0038708 | UNITRONIC LiHCH (TP) 8X2X0,75 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 8 x 2, Conductor Diameter: 0.75mm², Outer Cable Diameter: 14.9mm
-
0038802 | UNITRONIC LiHCH (TP) 2X2X1 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 2 x 2, Conductor Diameter: 1.0mm², Outer Cable Diameter: 9.2mm
-
0038803 | UNITRONIC LiHCH (TP) 3X2X1 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 3 x 2, Conductor Diameter: 1.0mm², Outer Cable Diameter: 10.6mm
-
0038804 | UNITRONIC LiHCH (TP) 4X2X1 | Halogen Free CableScreened, Twisted pair Halogen free cable, Number of Conductors: 4 x 2, Conductor Diameter: 1.0mm², Outer Cable Diameter: 11.5mm
-
1032000 | UNITRONIC ROBUST 2X0,14 | Halogen Free CableHalogen free data transmission cable, Number of Conductors: 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 3.2mm -

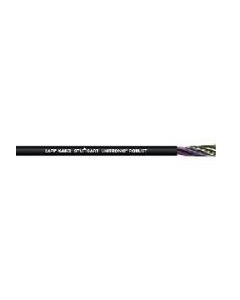

1032001 | UNITRONIC ROBUST 3X0,14 | Halogen Free CableHalogen free data transmission cable, Number of Conductors: 3, Conductor Diameter: 0.14mm², Outer Cable Diameter: 3.4mm -

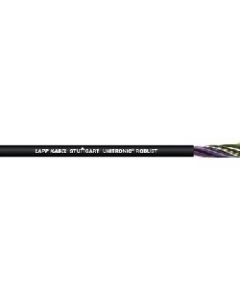

1032002 | UNITRONIC ROBUST 4X0,14 | Halogen Free CableHalogen free data transmission cable, Number of Conductors: 4, Conductor Diameter: 0.14mm², Outer Cable Diameter: 3.6mm -
1032003 | UNITRONIC ROBUST 5X0,14 | Halogen Free CableHalogen free data transmission cable, Number of Conductors: 5, Conductor Diameter: 0.14mm², Outer Cable Diameter: 3.9mm -
1032004 | UNITRONIC ROBUST 7X0,14 | Halogen Free CableHalogen free data transmission cable, Number of Conductors: 7, Conductor Diameter: 0.14mm², Outer Cable Diameter: 4.2mm -
1032005 | UNITRONIC ROBUST 8X0,14 | Halogen Free CableHalogen free data transmission cable, Number of Conductors: 8, Conductor Diameter: 0.14mm², Outer Cable Diameter: 4.9mm
