Power Chain Applications
Screened / Unscreened Servo and Encoder cables
- Power cores with one or with two control pair(s)
- For use in assembly & pick and place machinery
- Dynamic power chain performance
- Travel speeds: up to 5m/s
- Travel distance: up to 100 metres
- Abrasion and cut resistant
- Halogen free
- Oil resistant
- Flame resistant
-
70388733 | SERVO LK FNC 3X2X0,18+6X1,0 SCH | Power Chain CableCable Suitable for FANUC, Number and sizes of Conductors: 3 x 2 x 0,18 + 6 x 1,0, Outer Diameter: 8.7mm, Without GN-YE protective conductor, PUR sheath -
70388734 | SERVO LK FNC/5X2X0,18+6X0,5 | Power Chain CableCable Suitable for FANUC, No and sizes of Conductors: 5 x 2 x 0,18 + 6 x 0,5, Outer Cable Diameter: 8.7mm, Without GN-YE conductor, PUR outer sheath
-
70388735 | SERVO LK FNC / 10X2X24AWG SCH PVC/PUR | Power Chain CableCable Suitable for FANUC, Number and sizes of Conductors: 10 x 2 x 24 AWG, Outer Cable Diameter: 9.0mm, Without GN-YE protective conductor, PUR outer sheath
-

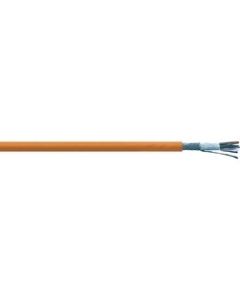

7072400 | SERVO LK INX-0209 4X2X0,25+2X1 | Power Chain CableScreened Feedback/Encoder/ Resolver Cable, No and Size of Conductors: 4 x 2 x 0,25 + 2 x 1,0, Diameter: 8.8mm, SERVO cables to INDRAMAT Standard INK -
7072401 | SERVO LK INX-0448 4X2X0,25+2X0,5 | Power Chain CableScreened Feedback/Encoder/ Resolver Cable, No and Size of Conductors: 4x2 x 0,25 + 2 x 0,5, Cable OD: 8.5mm, SERVO cables to INDRAMAT Standard INK
-
7072402 | SERVO LK INX-0208 9X0,5 | Power Chain CableScreened Feedback/Encoder/ Resolver Cable, Number and Size of Conductors: 9 x 0,5, Cable OD: 8.8mm, SERVO cables to INDRAMAT Standard INK
-
7072403 | SERVO LK INX-0653 4 G 1+2X(2X0.75) | Power Chain CableScreened Servo Cable, Number and Size of Conductors: 4 G 1,0 + 2 x (2 x 0,75), With GN-YE conductor, SERVO cables in acc. to INDRAMAT Standard INK
-
7072404 | SERVO LK INX-0650 4 G 1,5+2X(2X0.75) | Power Chain CableScreened Servo Cable, Number / Size of Conductors: 4 G 1,5 + 2 x (2 x 0,75), Outer Diameter: 12.2mm,, SERVO cables in acc. to INDRAMAT Standard INK
-
7072405 | SERVO LK INX-0602 4 G 2,5+2X(2X1) | Power Chain CableScreened Servo Cable, No and Size of Conductors: 4 G 2,5 + 2 x (2 x 1,0), With GN-YE conductor, SERVO cables in acc. to INDRAMAT Standard INK
-
7072406 | SERVO LK INX-0603 4 G 4+(2X1)+(2X1,5) | Power Chain CableScreened Servo Cable, Number and Size of Conductors: 4 G 4 + (2 x 1,0) + (2 x 1,5), Diameter: 16.0mm, SERVO cables in acc. to INDRAMAT Standard INK
-
7072407 | SERVO LK INX-0604 4 G 6+(2X1)+(2X1,5) | Power Chain CableScreened Servo Cable, Number and Size of Conductors: 4 G 6 + (2 x 1,0) + (2 x 1,5), Outer Cable Diameter: 18.8mm, With GN-YE protective conductor, SERVO cables in acc. to INDRAMAT Standard INK
-
7072408 | SERVO CABLE LK INX-0605 4 G 10+2X1+2X1,5 | Power Chain CableScreened Servo Cable, Number and Size of Conductors: 4 G 10 + (2 x 1,0) + (2 x 1,5), Outer Cable Diameter: 22.0mm, With GN-YE protective conductor
