Power Chain Applications
Screened / Unscreened Servo and Encoder cables
- Power cores with one or with two control pair(s)
- For use in assembly & pick and place machinery
- Dynamic power chain performance
- Travel speeds: up to 5m/s
- Travel distance: up to 100 metres
- Abrasion and cut resistant
- Halogen free
- Oil resistant
- Flame resistant
-
7072510 | SERVO LK LZM-FD4 G 1,5+(2X0,5)H.FLEX. | Power Chain CableEncoder Cable to LENZE Standard, 4 G 1,5 + (2 x 0,5), Outer Cable Diameter: 11.5mm, With GN-YE protective conductor -
7072511 | SERVO LK LZM-FD 4 G 2,5+(2X0,5) | Power Chain CableEncoder Cable to LENZE Standard, Number and Size of Conductors: 4 G 2,5 + (2 x 0,5), Diameter: 13.2mm, With GN-YE protective conductor, PUR sheath
-
7072512 | SERVO LK LZM-FD 4 G 4+ (2X1) H.FLEX. | Power Chain CableEncoder Cable to LENZE Standard, Conductors: 4 G 4 + (2 x 1,0), Outer Cable Diameter: 14.6mm, With GN-YE protective conductor, PUR outer sheath
-
7072513 | SERVO LK LZM-FD 4 G 6+ (2X1)/H.FLEX. | Power Chain CableEncoder Cable to LENZE Standard, Conductors: 4 G 6 + (2 x 1,0), Outer Cable Diameter: 16.8mm, With GN-YE protective conductor, PUR outer sheath
-
7072514 | SERVO LK LZM-FD 4 G 10+ (2X1)H.FLEX. | Power Chain CableEncoder Cable to LENZE Standard, Conductors: 4 G 10 + (2 x 1,0), Outer Cable Diameter: 20.1mm, With GN-YE protective conductor, PUR outer sheath
-
7072515 | SERVO LK LZM-FD 4 G 16+ (2X1)H.FLEX. | Power Chain CableEncoder Cable to LENZE Standard, Conductors: 4 G 16 + (2 x 1,0, Outer Cable Diameter: 23.8mm, With GN-YE protective conductor, PUR outer sheath
-

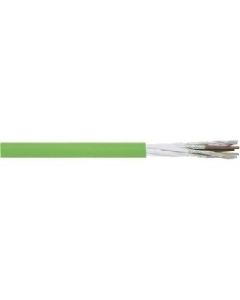

7072516 | SERVO LK LZR-FD3X(2X0,14)+1X(2X0,5) | Power Chain CableEncoder Cable to LENZE Standard, Conductors: 3 x (2 x 0,14) + 1 x (2 x 0,5), Outer Cable Diameter: 10.0mm, Without GN-YE conductor, PUR outer sheath -
7072517 | SERVO LK LZE-FD4X(2X0,14)+1X(2X1) | Power Chain CableEncoder Cable to LENZE Standard, Conductors: 4 x (2 x 0,14) + 1 x (2 x 1,0), Outer Cable Diameter: 11.5mm, Without GN-YE conductor, PUR outer sheath
