Power Chain Applications
Screened / Unscreened Servo and Encoder cables
- Power cores with one or with two control pair(s)
- For use in assembly & pick and place machinery
- Dynamic power chain performance
- Travel speeds: up to 5m/s
- Travel distance: up to 100 metres
- Abrasion and cut resistant
- Halogen free
- Oil resistant
- Flame resistant
-
0027974 | SERVO FD 796CP 4G16+2x(2x1,5) | Power Chain CableScreened Servo cable, Number of Conductors: 4G16 + (2 x 1.5mm²), Conductor Cross section: 16.0mm², Outer Diameter: 25.5mm, Power cores with control pair(s)
-
0027975 | SERVO FD 796CP 4G25+2x(2x1,5) | Power Chain CableScreened Servo cable, Number of Conductors: 4G25+(2x1.5mm²), Conductor Cross section: 25.0mm², Outer Diameter: 28.8mm, With GN/YE Protective conductor
-
0027976 | SERVO FD 796CP 4G35+2x(2 x 1,5) | Power Chain CableScreened Servo cable, No. of Conductors: 4G35 + (2 x 1.5mm²), Conductor Cross section: 35.0mm² + 1.5mm², Outer Diameter: 30.9mm, Power cores with control pair(s)
-
0027977 | SERVO FD 796CP 4G50 + 2 x(2 x 2,5) | Power Chain CableScreened Servo cable, No. of Conductors: 4G50 + (2 x 1.5mm²), Conductor Cross section: 50.0mm² + 1.5mm, Outer Diameter: 36.3mm, With GN/YE Protective conductor
-

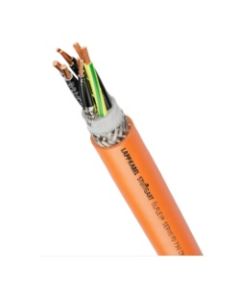

0027978 | SERVO FD 796CP 4G2,5+ (2 x 1,0) | Power Chain CableScreened Servo cable, Number of Conductors: 4 + (2 x 1.0mm²), Conductor Cross section: 2.5mm², Outer Diameter: 13.5mm, Power cores with control pair(s)
-
0027980 | SERVO FD 796CP 4G4+2 x (2 x 1,0) | Power Chain CableScreened Servo cable, Number of Conductors: 4G4+2 x (2 x 1.0mm²), Conductor Cross section: 4.0mm², Outer Diameter: 16.1mm, Power cores with control pair(s)
-
0027981 | OLFLEX SERVO FD 796CP 4G4+ (2 x 1,0) | Power Chain CableScreened Servo cable, Number of Conductors: 4 + (2 x 1.0mm²), Conductor Cross section: 4.0mm², Outer Cable Diameter: 14.8mm, With GN/YE Protective conductor
-
0027982 | OLFLEX SERVO FD 796CP 4G6+ (2x 1,0) | Power Chain CableScreened Servo cable, Number of Conductors: 4 + (2 x 1.0mm²), Conductor Cross section: 6.0mm², Outer Cable Diameter: 16.8mm, With GN/YE Protective conductor
-
0027983 | OLFLEX SERVO FD 796CP 4G10 + (2 x 1,0) | Power Chain CableScreened Servo cable, Number of Conductors: 4G10+ (2 x 1.0mm²), Conductor Cross section: 10.0mm², Outer Diameter: 18.8mm, With GN/YE Protective conductor
-
0027984 | OLFLEX SERVO FD 796CP 4G16 + (2 x 1,0) | Power Chain CableScreened Servo cable, Number of Conductors: 4 + (2 x 1.0mm²), Conductor Cross section: 16.0mm², Outer Cable Diameter: 22.8mm, With GN/YE Protective conductor
-
0036320 | OLFLEX SERVO FD 781 CY 4G1,5 | Power Chain CableScreened Servo cable, Number of Conductors: 4, Conductor Cross section: 1.5mm², Cable OD: 9.8mm, Extra-fine wire strand made of bare copper wires
-
0036321 | OLFLEX SERVO FD 781 CY 4G2,5 | Power Chain CableScreened Servo cable, Number of Conductors: 4, Conductor Cross section: 2.5mm², Cable OD: 11.9mm, Extra-fine wire strand made of bare copper wires
