Power Chain Applications
Screened / Unscreened Servo and Encoder cables
- Power cores with one or with two control pair(s)
- For use in assembly & pick and place machinery
- Dynamic power chain performance
- Travel speeds: up to 5m/s
- Travel distance: up to 100 metres
- Abrasion and cut resistant
- Halogen free
- Oil resistant
- Flame resistant
-
0036917 | OLFLEX SERVO FD 798CP 10X0,14+2X0,5 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 10x0,14+2x0,5, Without GN-YE protective conductor, Power cores with one or with two control pair(s) -
0036918 | OLFLEX SERVO FD 798CP 10X0,14+4X0,5 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 10x0,14+4x0,5, Outer Cable Diameter: 8.1mm, Without GN-YE protective conductor
-
0036920 | OLFLEX SERVO FD 798CP 4X2X0,14+4X0,5 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 4x2x0,14+4x0,5, Outer Cable Diameter: 8.2mm, Without GN-YE protective conductor -
0036921 | OLFLEX SERVO FD 798CP 4X2X0,25 | Power Chain CableScreened Encoder Cable, Number and Size of Conductors: 4x2x0,25, Cable OD: 7.6mm, Without GN-YE protective conductor, Power cores with control pair(s) -
0036923 | OLFLEX SERVO FD 798CP 8X2X0,18 | Power Chain CableScreened Encoder Cable, No and size of Conductors: 8x2x0,18, Cable OD: 7.8mm, Without GN-YE conductor, Power cores with one or with two control pair(s) -

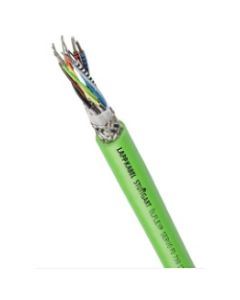

0036924 | OLFLEX SERVO FD 798CP 4X2X0,18 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 4x2x0,18, Outer Cable Diameter: 6.4mm, Without GN-YE protective conductor -
0036926 | OLFLEX SERVO FD 798CP 12X0,22 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 12x0,22, Outer Cable Diameter: 6.9mm, Without GN-YE protective conductor -
0036927 | OLFLEX SERVO FD 798CP 4X2X0,25+2X0,5 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 4x2x0,25+2x0,5, Outer Cable Diameter: 8.5mm, Without GN-YE protective conductor -
0036928 | OLFLEX SERVO FD 798CP S2 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 2x2x0,14+2x(2x0,14)+4x0,5+(4x0,14), Outer Diameter: 9.1mm, Without GN-YE protective conductor
-
0036929 | OLFLEX SERVO FD 798CP 2X(2X0,25)+2X0,5 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 2x(2x0,25)+2x0,5, Outer Cable Diameter: 8.7mm, Without GN-YE protective conductor -
0036930 | OLFLEX SERVO FD 798CP 2X2X0,25+2X0,5 | Power Chain CableScreened Encoder Cable, Number and size of Conductors: 2x2x0,25+2x0,5, Outer Cable Diameter: 7.3mm, Without GN-YE protective conductor -

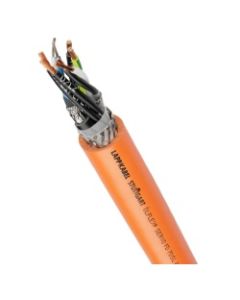

1023274 | SERVO FD 7DSL 4G1+(2x0,75)+(2x22AWG) | Power Chain CableScreened Hybrid servo cable, Number and Size of Conductors: 4G1+(2x0,75)+(2x22AWG), Outer Diameter: 11.8mm, With protective conductor
