Lapp NYCY and NYCWY Direct Burial Cable
NYCY Cable
- Fixed installation, direct burial PVC cable
- With concentric, helical copper conductor and cross-conductive spiral
- Flame-retardant according IEC 60332-1-2
- Power and control cable for fixed installation
- For indoor and outdoor use
- Flame-retardant according IEC 60332-1-2
- Core identification code: Up to 5 cores: colour-coded according to VDE 0293-308

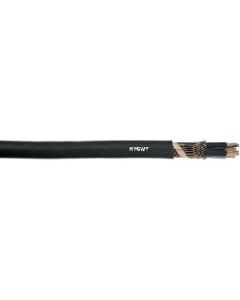

NYCWY Cable
- Direct burial PVC cable
- With concentric, wave-like copper conductor and cross-conductive spiral
- Power and control cable for fixed installation
- For indoor and outdoor use
- Flame-retardant according IEC 60332-1-2
- Core identification code: Up to 5 cores: colour-coded according to VDE 0293-308
-
15505003 | NYCWY 2X10 RE/10 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 2 Core, Conductor Diameter 10mm² -
15505143 | NYCWY 3X95 SM/50 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 95mm² -
15505153 | NYCWY 3X120 SM/70 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 120mm² -
15505163 | NYCWY 3X50 SM/50 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 50mm² -
15505173 | NYCWY 3X185 SM/95 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 185mm² -
15505263 | NYCWY 3X10 RE/10 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 10mm² -
15505273 | NYCWY 3X16 RE/16 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 16mm² -
15505283 | NYCWY 3X25 RM/25 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 25mm² -
15505303 | NYCWY 3X35 SM/35 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 35mm² -
15505323 | NYCWY 3X95 SM/95 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 95mm² -
15505353 | NYCWY 3X150 SM/70 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 3 Core, Conductor Diameter 150mm² -
15505403 | NYCWY 4X10 RE/10 | Direct Burial CablePVC cable with concentric, wave-like copper conductor and cross-conductive spiral, 4 Core, Conductor Diameter 10mm²
