Lapp H05Z-K 90°C & H07Z
H05Z-K 90°C
Halogen-free single core, harmonised
- Harmonised; halogen-free to protect human life, the environment and material assets
- H05Z-K 90°C, <HAR>, Halogen-free single core, harmonised, for wiring in control cabinets, nominal voltage 300/500V
- CPR: Article number choice under www.lappkabel.com/cpr
- Halogen-free and harmonised (HAR)
- For expanded ambient temperatures
- see ÖLFLEX® HEAT 125 SC
-
4726069 | H07Z-K 90°C 1x50 GY | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 50mm², Cable Outer Diameter: 11.5 - 14.4mm, Grey
-
4726071 | H07Z-K 90°C 1x1,5 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.5mm, Violet
-

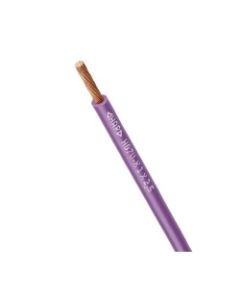

4726071K | H07Z-K 90°C EMBOSS 1x1,5 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.5mm, Violet
-
4726072 | H07Z-K 90°C 1x2,5 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.3mm, Violet
-
4726072K | H07Z-K 90°C EMBOSS 1x2,5 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.3mm, Violet
-
4726073 | H07Z-K 90°C 1x4 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.9mm, Violet
-
4726073K | H07Z-K 90°C EMBOSS 1x4 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.9mm, Violet
-
4726074 | H07Z-K 90°C 1x6 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 6.0mm², Cable Outer Diameter: 4.4 - 5.5mm, Violet
-
4726074K | H07Z-K 90°C EMBOSS 1x6 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 6.0mm², Cable Outer Diameter: 4.4 - 5.5mm, Violet
-
4726075 | H07Z-K 90°C 1x10 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 10mm², Cable Outer Diameter: 5.7 - 7.1mm, Violet
-
4726076 | H07Z-K 90°C 1x16 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 16mm², Cable Outer Diameter: 6.7 - 8.4mm -
4726077 | H07Z-K 90°C 1x25 VT | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 25mm², Cable Outer Diameter: 8.4 - 10.6mm, Violet
