Control Cabinet Single Core Cables
A range of Harmonised approved PVC single core cables
These multi standard wiring cables are designed for use in control panels as well as for installation in conduits and trunking, applicable within the scope of the UL or Canadian or European standard specifications. They are particularly designed for use in the wiring of industrial machines in accordance with NFPA 79. Available in sizes from 0.14mm² up to 240mm², and in a range of various colours.Working voltages from 50V to 750V.
-
4520011S | H07V-K 1X1,5 BK | LAPP Single Core Cable4520011S, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm, Black
-
4520012 | H07V-K 1X2,5 BK | LAPP Single Core Cable4520012, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm, Black
-
4520012E | H07V-K EMBOSS 1X2,5 BK | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm², Core Colour: Black -
4520012K | H07V-K EMBOSS 1X2,5 BK | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm², Core Colour: Black -
4520012S | H07V-K 1X2,5 BK | LAPP Single Core Cable4520012S, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm, Black
-
4520013 | H07V-K 1X4 BK | LAPP Single Core Cable4520013, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 4mm², Cable Outer Diameter: 3.9 - 4.8mm, Black
-
4520013E | H07V-K EMBOSS 1X4 BK | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.8mm², Core Colour: Black -
4520013K | H07V-K EMBOSS 1X4 BK | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.8mm², Core Colour: Black -
4520014 | H07V-K 1X6 BK | LAPP Single Core Cable4520014, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 6mm², Cable Outer Diameter: 4.4 - 5.3mm, Black
-

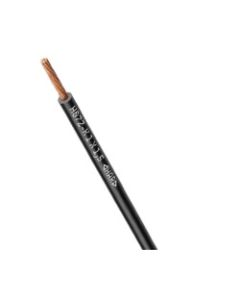

4520014E | H07V-K EMBOSS 1X6 BK | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 6.0mm², Cable Outer Diameter: 4.4 - 5.3mm², Core Colour: Black -
4520014K | H07V-K EMBOSS 1X6 BK | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 6.0mm², Cable Outer Diameter: 4.4 - 5.3mm², Core Colour: Black -
4520015 | H07V-K 1X10 BK | LAPP Single Core Cable4520015, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 10mm², Cable Outer Diameter: 5.7 - 6.8mm, Black
