Control Cabinet Single Core Cables
A range of Harmonised approved PVC single core cables
These multi standard wiring cables are designed for use in control panels as well as for installation in conduits and trunking, applicable within the scope of the UL or Canadian or European standard specifications. They are particularly designed for use in the wiring of industrial machines in accordance with NFPA 79. Available in sizes from 0.14mm² up to 240mm², and in a range of various colours.Working voltages from 50V to 750V.
-

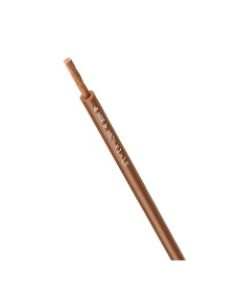

4520034 | H07V-K 1X6 BN | LAPP Single Core Cable4520034, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 6mm², Cable Outer Diameter: 4.4 - 5.3mm, Brown
-
4520035 | H07V-K 1X10 BN | LAPP Single Core Cable4520035, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 10mm², Cable Outer Diameter: 5.7 - 6.8mm, Brown
-
4520036 | H07V-K 1X16 BN | LAPP Single Core Cable4520036, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 16mm², Cable Outer Diameter: 6.7 - 8.1mm, Brown
-
4520041 | H07V-K 1X1,5 RD | LAPP Single Core Cable4520041, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm, Red
-
4520041E | H07V-K EMBOSS 1X1,5 RD | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm², Core Colour: Red -
4520041K | H07V-K EMBOSS 1X1,5 RD | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm², Core Colour: Red -
4520041S | H07V-K 1X1,5 RD | LAPP Single Core Cable4520041S, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm, Red
-
4520042 | H07V-K 1X2,5 RD | LAPP Single Core Cable4520042, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm, Red
-
4520042K | H07V-K EMBOSS 1X2,5 RD | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm², Core Colour: Red -
4520042S | H07V-K 1X2,5 RD | LAPP Single Core Cable4520042S, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm, Red
-

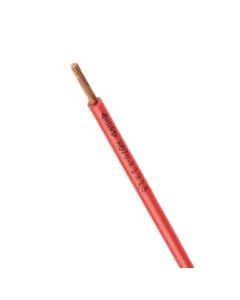

4520043 | H07V-K 1X4 RD | LAPP Single Core Cable4520043, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 4mm², Cable Outer Diameter: 3.9 - 4.8mm, Red
-
4520043K | H07V-K EMBOSS 1X4 RD | Single Core CableHarmonised, Flexible, Single Core Conductor, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.8mm², Core Colour: Red
