Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
0026634 | OLFLEX FD 90 1G240 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 240mm², Cable Outer Diameter: 31.6mm, Core Insulation: PVC
-
0026635 | OLFLEX FD 90 1X240 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 240mm², Cable Outer Diameter: 31.6mm, Core Insulation: PVC
-
0026640 | OLFLEX FD 90 1G300 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 300mm², Cable Outer Diameter: 33.5mm, Core Insulation: PVC
-

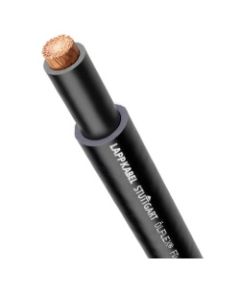

0026641 | OLFLEX FD 90 1X300 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 300mm², Cable Outer Diameter: 33.5mm, Core Insulation: PVC
-
0026651 | OLFLEX FD 90 CY 1X10 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 10mm², Cable Outer Diameter: 9.7mm, Core Insulation: PVC
-
0026653 | OLFLEX FD 90 CY 1X16 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 16mm², Cable Outer Diameter: 11.2mm, Core Insulation: PVC
-
0026655 | OLFLEX FD 90 CY 1X25 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 25mm², Cable Outer Diameter: 12.5mm, Core Insulation: PVC
-
0026657 | OLFLEX FD 90 CY 1X35 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 35mm², Cable Outer Diameter: 15.1mm, Core Insulation: PVC
-
0026659 | OLFLEX FD 90 CY 1X50 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 50mm², Cable Outer Diameter: 17.1mm, Core Insulation: PVC
-
0026661 | OLFLEX FD 90 CY 1X70 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 70mm², Cable Outer Diameter: 19.4mm, Core Insulation: PVC
-

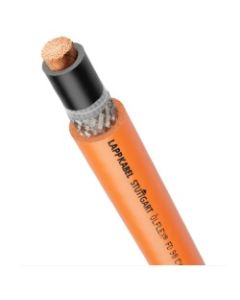

0026663 | OLFLEX FD 90 CY 1X95 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 95mm², Cable Outer Diameter: 20.9mm, Core Insulation: PVC
-
0026665 | OLFLEX FD 90 CY 1X120 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 120mm², Cable Outer Diameter: 24.5mm, Core Insulation: PVC
