Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
1026127 | OLFLEX FD 891 3G1 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 3, Conductor Cross section: 1.0mm², Cable Outer Diameter: 7.1mm, With GN-YE protective conductor -

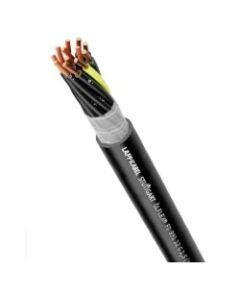

1026128 | OLFLEX FD 891 7G1 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 7, Conductor Cross section: 1.0mm², Cable Outer Diameter: 10.5mm, With GN-YE protective conductor -
1026129 | OLFLEX FD 891 4 G 1 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 4, Conductor Cross section: 1.0mm², Cable Outer Diameter: 7.8mm, With GN-YE protective conductor -
1026130 | OLFLEX FD 891 5G1 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 5, Conductor Cross section: 1.0mm², Cable Outer Diameter: 8.8mm, With GN-YE protective conductor -
1026131 | OLFLEX FD 891 12G1 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 12, Conductor Cross section: 1.0mm², Cable Outer Diameter: 12.5mm, With GN-YE protective conductor -
1026132 | OLFLEX FD 891 18G1 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 18, Conductor Cross section: 1.0mm², Cable Outer Diameter: 15mm, With GN-YE protective conductor -
1026133 | OLFLEX FD 891 25G1 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 25, Conductor Cross section: 1.0mm², Cable Outer Diameter: 17.9mm, With GN-YE protective conductor -
1026303 | OLFLEX FD 891 3G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 3, Conductor Cross section: 1.5mm², Cable Outer Diameter: 7.7mm, With GN-YE protective conductor -
1026304 | OLFLEX FD 891 4 G 1,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 4, Conductor Cross section: 1.5mm², Cable Outer Diameter: 8.8mm, With GN-YE protective conductor -
1026305 | OLFLEX FD 891 5G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 5, Conductor Cross section: 1.5mm², Cable Outer Diameter: 9.6mm, With GN-YE protective conductor -
1026307 | OLFLEX FD 891 7G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 7, Conductor Cross section: 1.5mm², Cable Outer Diameter: 11.6mm, With GN-YE protective conductor -
1026312 | OLFLEX FD 891 12G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 12, Conductor Cross section: 1.5mm², Cable Outer Diameter: 13.9mm, With GN-YE protective conductor
