Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
1026720 | OLFLEX CHAIN 809 7G1,0 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 7, Conductor Cross section: 1.0mm², Cable Outer Diameter: 9mm, With GN-YE protective conductor
-
1026721 | OLFLEX CHAIN 809 12G1 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 12, Conductor Cross section: 1.0mm², Cable Outer Diameter: 10.9mm, With GN-YE protective conductor
-
1026722 | OLFLEX CHAIN 809 18G1,0 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 18, Conductor Cross section: 1.0mm², Cable Outer Diameter: 13.2mm, With GN-YE protective conductor
-
1026723 | OLFLEX CHAIN 809 25G1,0 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 25, Conductor Cross section: 1.0mm², Cable Outer Diameter: 15.7mm, With GN-YE protective conductor
-
1026724 | OLFLEX CHAIN 809 2X1,5 | Various ApplicationsHighly Flexible PVC Control Cable, No. of Conductors: 2, Conductor Cross section: 1.5mm², Cable Outer Diameter: 6.5mm, Without GN-YE protective conductor
-
1026725 | OLFLEX CHAIN 809 3G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, No. of Conductors: 3, Conductor Cross section: 1.5mm², Outer Diameter: 6.9mm, With GN-YE protective conductor
-
1026726 | OLFLEX CHAIN 809 4 G 1,5 | Various ApplicationsHighly Flexible PVC Control Cable, No. of Conductors:4 , Conductor Cross section: 1.5mm², Outer Diameter: 7.6mm, With GN-YE protective conductor
-
1026727 | OLFLEX CHAIN 809 5G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, No. of Conductors: 5, Conductor Cross section: 1.5mm², Outer Diameter: 8.5mm, With GN-YE protective conductor
-

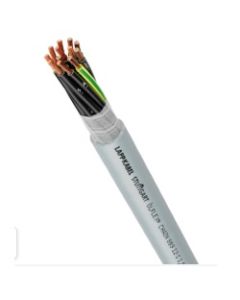

1026728 | OLFLEX CHAIN 809 7G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, No. of Conductors: 7, Conductor Cross section: 1.5mm², Outer Diameter: 10.3mm, With GN-YE protective conductor
-
1026729 | OLFLEX CHAIN 809 12G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, No. of Conductors: 12, Conductor Cross section: 1.5mm², Outer Diameter: 12.3mm, With GN-YE protective conductor
-
1026730 | OLFLEX CHAIN 809 18G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, No. of Conductors: 18, Conductor Cross section: 1.5mm², Outer Diameter: 14.9mm, With GN-YE protective conductor
-
1026731 | OLFLEX CHAIN 809 25G1,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 25, Conductor Cross section: 1.5mm², Cable Outer Diameter: 17.9mm, With GN-YE protective conductor
