Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
1026732 | OLFLEX CHAIN 809 3G2,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 3 , Conductor Cross section: 2.5mm², Cable Outer Diameter: 8.4mm, With GN-YE protective conductor -
1026733 | OLFLEX CHAIN 809 4 G 2,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 4, Conductor Cross section: 2.5mm², Cable Outer Diameter: 9.3mm, With GN-YE protective conductor -

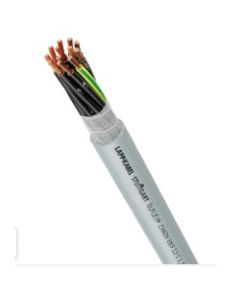

1026734 | OLFLEX CHAIN 809 7G2,5 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 7, Conductor Cross section: 2.5mm², Cable Outer Diameter: 12.7mm, With GN-YE protective conductor -
1026737 | OLFLEX CHAIN 809 4 G 4 | Various ApplicationsHighly Flexible PVC Control Cable, Number of Conductors: 4, Conductor Cross section: 4.0mm², Cable Outer Diameter: 11.1mm, With GN-YE protective conductor
-
1026751 | OLFLEX CHAIN 809 CY 2X0,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No of Conductors: 2, Conductor Cross section: 0.5mm², Outer Diameter: 5.8mm, Without GN-YE protective conductor
-
1026752 | OLFLEX CHAIN 809 CY 3G0,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 3, Conductor Cross section: 0.5mm², Outer Diameter: 6.1mm, With GN-YE protective conductor
-
1026753 | OLFLEX CHAIN 809 CY 4 G 0,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors:4 , Conductor Cross section: 0.5mm², Outer Diameter: 6.6mm, With GN-YE protective conductor
-

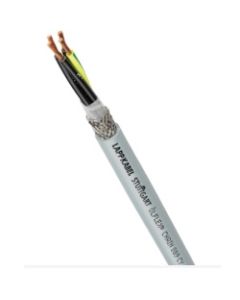

1026754 | OLFLEX CHAIN 809 CY 5G0,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 5, Conductor Cross section: 0.5mm², Outer Diameter: 7.1mm, With GN-YE protective conductor
-
1026755 | OLFLEX CHAIN 809 CY 7G0,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 7, Conductor Cross section: 0.5mm², Outer Diameter: 8.5mm, With GN-YE protective conductor
-
1026756 | OLFLEX CHAIN 809 CY 12G0,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 12, Conductor Cross section: 0.5mm², Outer Diameter: 10mm, With GN-YE protective conductor
-
1026757 | OLFLEX CHAIN 809 CY 18G0,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 18, Conductor Cross section: 0.5mm², Outer Diameter: 11.8mm, With GN-YE protective conductor
-
1026758 | OLFLEX CHAIN 809 CY 25G0,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 25, Conductor Cross section: 0.5mm², Outer Diameter: 14.1mm, With GN-YE protective conductor
