Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
1026771 | OLFLEX CHAIN 809 CY 7G1,0 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 7, Conductor Cross section: 1.0mm², Outer Diameter: 9.8mm, With GN-YE protective conductor
-
1026772 | OLFLEX CHAIN 809 CY 12G1 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 12, Conductor Cross section: 1.0mm², Outer Diameter: 11.7mm, With GN-YE protective conductor
-
1026773 | OLFLEX CHAIN 809 CY 18G1,0 | Various ApplicationsHighly Flexible Screened PVC Control Cable, NO. of Conductors: 18, Conductor Cross section: 1.0mm², Outer Diameter: 14.0mm, With GN-YE protective conductor
-
1026774 | OLFLEX CHAIN 809 CY 25G1.0 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 25, Conductor Cross section: 1.0mm², Outer Diameter: 16.7mm, With GN-YE protective conductor
-
1026775 | OLFLEX CHAIN 809 CY 2X1,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 2, Conductor Cross section: 1.5mm², Outer Diameter: 7.1mm, Without GN-YE protective conductor
-
1026776 | OLFLEX CHAIN 809 CY 3G1,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No of Conductors: 3, Conductor Cross section: 1.5mm², Outer Diameter: 7.5mm, With GN-YE protective conductor
-
1026777 | OLFLEX CHAIN 809 CY 4 G 1,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No of Conductors: 4, Conductor Cross section: 1.5mm², Outer Diameter: 8.4mm, With GN-YE protective conductor
-
1026778 | OLFLEX CHAIN 809 CY 5G1,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 5, Conductor Cross section: 1.5mm², Outer Diameter: 9.1mm, With GN-YE protective conductor
-
1026779 | OLFLEX CHAIN 809 CY 7G1,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 7, Conductor Cross section: 1.5mm², Outer Diameter: 10.9mm, With GN-YE protective conductor
-
1026780 | OLFLEX CHAIN 809 CY 12G1,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 12, Conductor Cross section: 1.5mm², Outer Diameter: 13.3mm, With GN-YE protective conductor
-
1026781 | OLFLEX CHAIN 809 CY 18G1,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 18, Conductor Cross section: 1.5mm², Outer Diameter: 15.7mm, With GN-YE protective conductor
-

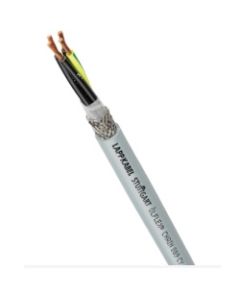

1026782 | OLFLEX CHAIN 809 CY 25G1,5 | Various ApplicationsHighly Flexible Screened PVC Control Cable, No. of Conductors: 25, Conductor Cross section: 1.5mm², Outer Diameter: 18.7mm, With GN-YE protective conductor
