Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
1062917 | OLFLEX CHAIN 809SC 1X120 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 120mm², Cable Outer Diameter: 23.0mm, Core Colour: Black
-

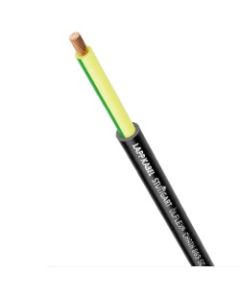

1062918 | OLFLEX CHAIN 809SC 1G150 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 150mm², Cable Outer Diameter: 24.8mm, Core Colour: Green - Yellow
-

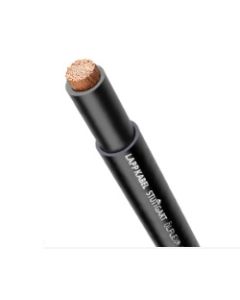

1062919 | OLFLEX CHAIN 809SC 1X150 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 150mm², Cable Outer Diameter: 24.8mm, Core Colour: Black
-
1062920 | OLFLEX CHAIN 809SC 1G185 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 185mm², Cable Outer Diameter: 27.1mm, Core Colour: Green - Yellow
-
1062921 | OLFLEX CHAIN 809SC 1X185 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 185mm², Cable Outer Diameter: 27.1mm, Core Colour: Black
-
1062922 | OLFLEX CHAIN 809SC 1G240 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 240mm², Cable Outer Diameter: 30.6mm, Core Colour: Green - Yellow
-
1062923 | OLFLEX CHAIN 809SC 1X240 | Various ApplicationsHighly flexible, single core cable, Number of Conductors: 1, Conductor Cross section: 240mm², Cable Outer Diameter: 30.6mm, Core Colour: Black
-

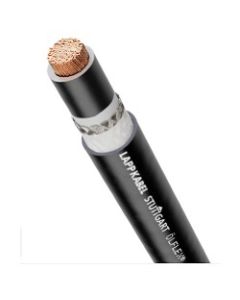

1062940 | OLFLEX CHAIN 809 SC CY 1X6 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 6mm², Cable Outer Diameter: 8.1mm, Core Insulation: PVC
-
1062941 | OLFLEX CHAIN 809 SC CY 1X10 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 10mm², Cable Outer Diameter: 9.7mm, Core Insulation: PVC
-
1062942 | OLFLEX CHAIN 809 SC CY 1X16 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 16mm², Cable Outer Diameter: 10.6mm, Core Insulation: PVC
-
1062943 | OLFLEX CHAIN 809 SC CY 1X25 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 25mm², Cable Outer Diameter: 12.0mm, Core Insulation: PVC
-

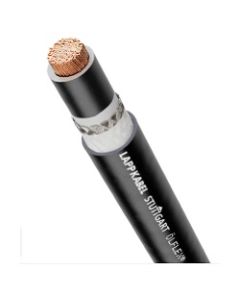

1062944 | OLFLEX CHAIN 809 SC CY 1X35 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 35mm², Cable Outer Diameter: 14.8mm, Core Insulation: PVC
