Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-

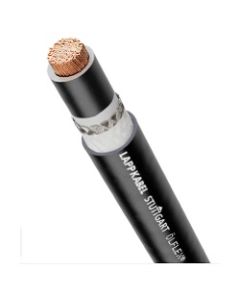

1062945 | OLFLEX CHAIN 809 SC CY 1X50 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 50mm², Cable Outer Diameter: 16.8mm, Core Insulation: PVC
-
1062946 | OLFLEX CHAIN 809 SC CY 1X70 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 70mm², Cable Outer Diameter: 18.5mm, Core Insulation: PVC
-
1062947 | OLFLEX CHAIN 809 SC CY 1X95 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 95mm², Cable Outer Diameter: 20.9mm, Core Insulation: PVC
-
1062948 | OLFLEX CHAIN 809 SC CY 1X120 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 120mm², Cable Outer Diameter: 24.1mm, Core Insulation: PVC
-
1062949 | OLFLEX CHAIN 809 SC CY 1X150 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 150mm², Cable Outer Diameter: 26.1mm, Core Insulation: PVC
-
1062950 | OLFLEX CHAIN 809 SC CY 1X185 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 185mm², Cable Outer Diameter: 28.4mm, Core Insulation: PVC
-
1062951 | OLFLEX CHAIN 809 SC CY 1X240 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 240mm², Cable Outer Diameter: 31.9mm, Core Insulation: PVC
-
1062952 | OLFLEX CHAIN 809 SC CY 1X300 | Various ApplicationsHighly flexible, screened single core cable, Number of Conductors: 1, Conductor Cross section: 300mm², Cable Outer Diameter: 33.5mm, Core Insulation: PVC
-
8710040 | OLFLEX CHAIN TM 4 G 6 | Various ApplicationsHighly flexible Control cable , No. of Conductors: 4, Conductor Cross section: 6.0mm², Cable Outer Diameter: 15.2mm, With GN-YE protective conductor
-

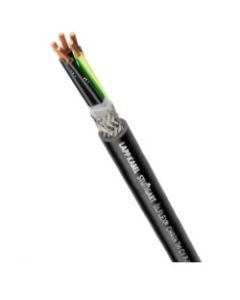

8710040S | OLFLEX CHAIN TM CY 4 G 6 | Harsh Conditions CableHighly flexible, Screened Control cable, No. of Conductors: 4, Conductor Cross section: 6.0mm², Outer Diameter: 16.1mm, With GN-YE protective conductor
-

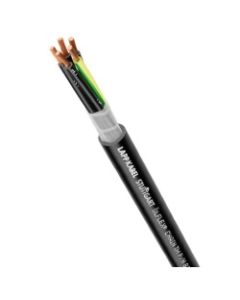

8712040 | OLFLEX CHAIN TM 4 G 4 | Various ApplicationsHighly flexible Control cable , Number of Conductors: 4, Conductor Cross section: 4.0mm², Cable Outer Diameter: 12.4mm, With GN-YE protective conductor
-
8712040S | OLFLEX CHAIN TM CY 4 G 4 | Various ApplicationsHighly flexible, Screened Control cable, No. of Conductors: 4, Conductor Cross section: 4.0mm², Cable Outer Diameter: 13.1mm, With GN-YE protective conductor
