Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
0026252 | OLFLEX CLASSIC FD 810 CY 5G1,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 5, Conductor Cross section: 1.5mm², Cable Outer Diameter: 10.9mm, With GN-YE protective conductor
-
0026253 | OLFLEX CLASSIC FD 810 CY 7G1,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 7, Conductor Cross section: 1.5mm², Cable Outer Diameter: 12.7mm, With GN-YE protective conductor
-
0026254 | OLFLEX CLASSIC FD 810 CY 12G1,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 12, Conductor Cross section: 1.5mm², Cable Outer Diameter: 15.1mm, With GN-YE protective conductor
-
0026255 | OLFLEX CLASSIC FD 810 CY 16G1,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 16, Conductor Cross section: 1.5mm², Cable Outer Diameter: 16.8mm, With GN-YE protective conductor
-
0026256 | OLFLEX CLASSIC FD 810 CY 18G1,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 18, Conductor Cross section: 1.5mm², Cable Outer Diameter: 17.8mm, With GN-YE protective conductor
-
0026257 | OLFLEX CLASSIC FD 810 CY 25G1,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 25, Conductor Cross section: 1.5mm², Cable Outer Diameter: 21.2mm, With GN-YE protective conductor
-
0026259 | OLFLEX CLASSIC FD 810 CY 34 G 1,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 34, Conductor Cross section: 1.5mm², Cable Outer Diameter: 23.9mm, With GN-YE protective conductor
-
0026270 | OLFLEX CLASSIC FD 810 CY 3G2,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 3, Conductor Cross section: 2.5mm², Cable Outer Diameter: 10.8mm, With GN-YE protective conductor
-
0026271 | OLFLEX CLASSIC FD 810 CY 4 G 2,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 4, Conductor Cross section: 2.5mm², Cable Outer Diameter: 11.8mm, With GN-YE protective conductor
-

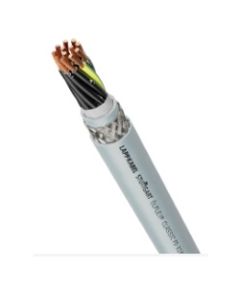

0026272 | OLFLEX CLASSIC FD 810 CY 5G2,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 5, Conductor Cross section: 2.5mm², Cable Outer Diameter: 13.2mm, With GN-YE protective conductor
-
0026273 | OLFLEX CLASSIC FD 810 CY 7G2,5 | Various ApplicationsScreened power and control cable, Number of Conductors: 7, Conductor Cross section: 2.5mm², Cable Outer Diameter: 15.8mm, With GN-YE protective conductor
-
0026281 | OLFLEX CLASSIC FD 810 CY 4 G 4 | Various ApplicationsScreened power and control cable, Number of Conductors: 4, Conductor Cross section: 4.0mm², Cable Outer Diameter: 13.7mm, With GN-YE protective conductor
