Various Applications
Power and Control cables for various applications
- Multi Core / Single Core
- Number of conductors: From 1 to 65
- Conductor Cross Sections from 0.5mm² to 300mm²
- Screened / Unscreened versions
- With / Without GN-YE protective conductor
- Product values are nominal values
-
0026219 | OLFLEX CLASSIC FD 810 CY 2X0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 2, Conductor Cross section: 0.75mm²,Outer Diameter: 7.3mm, Without GN-YE protective conductor
-
0026220 | OLFLEX CLASSIC FD 810 CY 3G0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 3, Conductor Cross section: 0.75mm², Cable Outer Diameter: 7.8mm, With GN-YE protective conductor
-
0026221 | OLFLEX CLASSIC FD 810 CY 4 G 0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 4, Conductor Cross section: 0.75mm², Cable Outer Diameter: 8.4mm, With GN-YE protective conductor
-
0026222 | OLFLEX CLASSIC FD 810 CY 5G0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 5, Conductor Cross section: 0.75mm², Cable Outer Diameter: 9mm, With GN-YE protective conductor
-
0026223 | OLFLEX CLASSIC FD 810 CY 7G0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 7, Conductor Cross section: 0.75mm², Cable Outer Diameter: 10.7mm, With GN-YE protective conductor
-
0026224 | OLFLEX CLASSIC FD 810 CY 12G0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 12, Conductor Cross section: 0.75mm², Cable Outer Diameter: 12.4mm, With GN-YE protective conductor
-
0026226 | OLFLEX CLASSIC FD 810 CY 18G0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 18, Conductor Cross section: 0.75mm², Cable Outer Diameter: 14.9mm, With GN-YE protective conductor
-
0026227 | OLFLEX CLASSIC FD 810 CY 25G0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 25, Conductor Cross section: 0.75mm², Cable Outer Diameter: 17.4mm, With GN-YE protective conductor
-

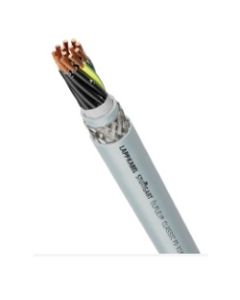

0026229 | OLFLEX CLASSIC FD 810 CY 30G0,75 | Various ApplicationsScreened power and control cable, Number of Conductors: 30, Conductor Cross section: 0.75mm², Cable Outer Diameter: 18mm, With GN-YE protective conductor
-
0026230 | OLFLEX CLASSIC FD 810 CY 2X1 | Various ApplicationsScreened power and control cable, Number of Conductors: 2, Conductor Cross section: 1.0mm², Outer Diameter: 7.7mm, Without GN-YE protective conductor
-
0026231 | OLFLEX CLASSIC FD 810 CY 3G1 | Various ApplicationsScreened power and control cable, Number of Conductors: 3, Conductor Cross section: 1.0mm², Cable Outer Diameter: 8.2mm, With GN-YE protective conductor
-
0026232 | OLFLEX CLASSIC FD 810 CY 4 G 1 | Various ApplicationsScreened power and control cable, Number of Conductors: 4, Conductor Cross section: 1.0mm², Cable Outer Diameter: 8.9mm, With GN-YE protective conductor
