SMB 50 ohm sub-miniature connector
General purpose RF connector
- Meeting IEC 60169-10.
- Smaller than SMA they feature a snap together coupling and are suitable for applications up to 4 GHz.
- SMB have a gold plated centre and outer contact and are suited to applications in all industries.
- In common with the similar screw coupled SMC series, the centre contacts of SMB are reversed when compared with the larger SMA, with the plug having the female contact.
-
32-071-Q0 | 32071Q0 | SMB Press Fit Jack Tab ContactSMB 50 ohm straight panel mounted Jack, White bronze plated body for press fitting to an aluminium panel. The centre contact is a gold plated tab. -

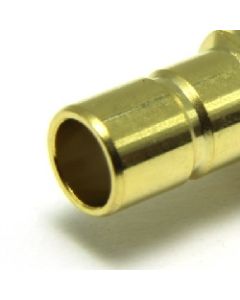

32-071-Q0-0.13 | 32071Q0013 | Press Fit Jack Tab ContactSMB 50 ohm straight panel mounted Jack, White bronze plated body for press fitting to an aluminium panel. The centre contact is a gold plated tab. -
32-101-D3-AA | 32101D3AA | SMB R/A Solder / Clamp PlugSMB 50 ohm right angle solder clamp plug Centre contact is soldered and braid and jacket are clamped. Suitable for RG178 and similar cables in group AA. -

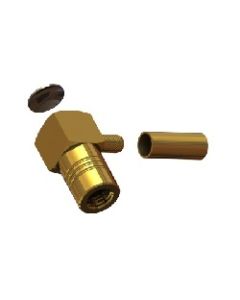

32-105-1-D3-AD | 321051D3AD | SMB R/A Solder / Crimp PlugSMB 50 ohm right angle solder crimp plug, has a closed entry outer body, contact is soldered and braid is crimped. Suitable for use with cables in group AD. -

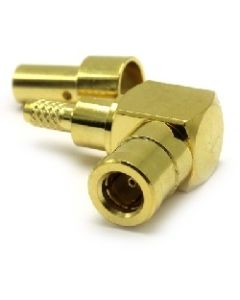

32-105-D3-AB | 32105D3AB | SMB R/A Solder / Crimp PlugSMB 50 ohm right angle capless solder crimp plug, This 50 ohm plug is adapted for use with 75 ohm cable. Suitable for use with cables in group AD. -
32-105-D3-AD | 32105D3AD | SMB R/A Solder / Crimp PlugSMB 50 ohm right angle solder crimp plug, gold plated centre and outer contact. Suitable for use with RG174 and cables in group AD. -
32-105-D3-AE | 32105D3AE | SMB R/A Solder / Crimp PlugSMB 50 ohm right angle solder crimp plug, gold plated centre and outer contact. Suitable for use with RD316 and cables in group AE -

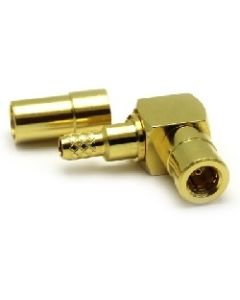

32-105-D3-BD | 32105D3BD | SMB R/A Solder / Crimp PlugSMB 50 ohm right angle capless solder crimp plug, adapted for use with 75 ohm cable Suitable for use with BT3002 and cables in group BD -

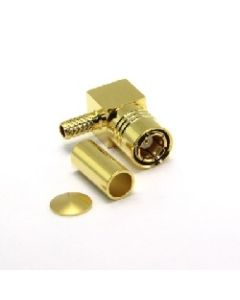

32-105-D3-BG | 32105D3BG | SMB R/A Solder / Crimp PlugSMB 50 ohm right angle solder crimp plug, adapted for use with 75 ohm cable Suitable for use with RA8000 and cables in group BG -
32-105-D6-AC | 32105D6AC | SMB R/A Solder / Crimp PlugSMB 50 ohm right angle solder crimp plug, adapted for use with 75 ohm cable Suitable for use with RD179 and cables in group AC -
32-105-Q3-AK | 32105Q3AK | SMB R/A Solder / Crimp PlugSMB 50 ohm right angle solder crimp plug, gold plated centre and White Bronze outer contact. Suitable for use with RG223 and cables in group AK -

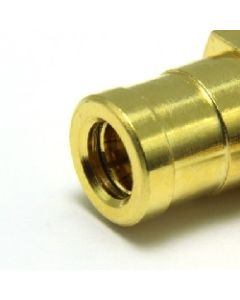

32-108-D3-HA | 32108D3HA | SMB R/A Solder / Solder PlugSMB 50 ohm right angle direct solder plug for semi-rigid cable.Suitable for use with RG405 (0.085") and cables in group HA
