Terminal Blocks
PCB terminal blocks and PCB connectors
- With screw, spring, insulation displacement, pierce or crimp connection
- For currents up to 232 A and voltages up to 1000 V
- For conductor cross-sections from 0.14 to 95 mm2
- PCB terminal block for two to 24 positions
- Various pitches (2.5 to 20 mm) and numbers of positions
- Locking by means of latch mechanism systems or screw flanges
- For transmission of signals, data and power to the PCB
- Maximum reliability thanks to high material quality
-
2200320 | FKDSO 2,5/ 4-R KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 22 A, Nominal voltage: 250V, Pitch: 5 mm, Number of positions: 4 -
2278393 | MKDSO 1,5/ 5-L-3,5 KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 8A, Nominal voltage: 160V, Pitch: 3.5 mm, Number of positions: 5 -
2278416 | MKDSO 1,5/ 5-R-3,5 KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 8A, Nominal voltage: 160V, Pitch: 3.5 mm, Number of positions: 5 -
2278429 | MKDSO 1,5/ 4-R-3,5 KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 8A, Nominal voltage: 160V, Pitch: 3.5 mm, Number of positions: 4 -
2278432 | MKDSO 1,5/ 4-L-3,5 KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 8A, Nominal voltage: 160V, Pitch: 3.5 mm, Number of positions: 4 -

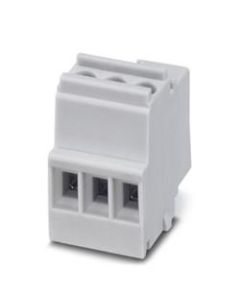

2278445 | MKDSO 1,5/ 3-L-3,5 KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 8A, Nominal voltage: 160V, Pitch: 3.5 mm, Number of positions: 4 -
2278458 | MKDSO 1,5/ 3-R-3,5 KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 8A, Nominal voltage: 160V, Pitch: 3.5 mm, Number of positions: 3 -

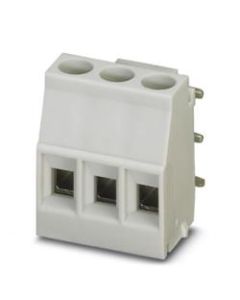

2854092 | MKDSO 2,5/ 3-R KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 24 A, Nominal voltage: 400V, Pitch: 5 mm, Height: 38.5mm -

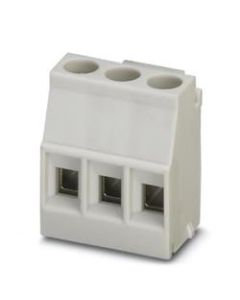

2854102 | MKDSO 2,5/ 3-L KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 24 A, Nominal voltage: 400V, Pitch: 5 mm, Number of positions: 3 -

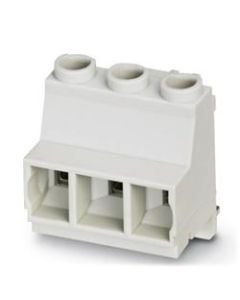

2890946 | MKDSO 2,5 HV/ 3L-7,5 KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 24 A, Nominal voltage: 630V, Pitch: 7.5 mm, Height: 38.5mm -

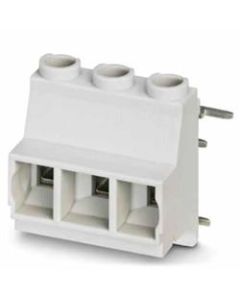

2890959 | MKDSO 2,5 HV/ 3R-7,5 KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 24 A, Nominal voltage: 630V, Pitch: 7.5 mm, Number of positions: 3 -

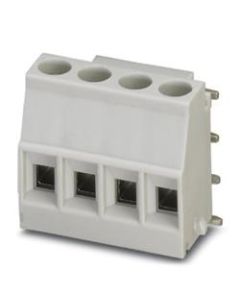

2908472 | MKDSO 2,5/ 4-R KMGY | PCB terminal blockPCB terminal block, For ME/ME MAX electronics housing, Nominal current: 24 A, Nominal voltage: 400V, Pitch: 5 mm, Height: 38.5mm
