Terminal Blocks
PCB terminal blocks and PCB connectors
- With screw, spring, insulation displacement, pierce or crimp connection
- For currents up to 232 A and voltages up to 1000 V
- For conductor cross-sections from 0.14 to 95 mm2
- PCB terminal block for two to 24 positions
- Various pitches (2.5 to 20 mm) and numbers of positions
- Locking by means of latch mechanism systems or screw flanges
- For transmission of signals, data and power to the PCB
- Maximum reliability thanks to high material quality
-
-
KRESS0302 | KRESS 03/02 | Terminal Block2 Pole Screw terminal block, clamp with wire protector (1000 V) -
KRESS04 | KRESS 04 | Terminal Block4 Pole Screw terminal block, clamp with wire protector, right angle -
KRESS05 | KRESS 05 | terminal block5 Pole Screw terminal block, clamp with wire protector, right angle -

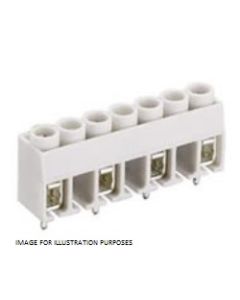

KRESS0503 | KRESS 05/03 | Terminal Block3 Pole Screw terminal block, clamp with wire protector (1000 V) -
KRESS06 | KRESS 06 | Terminal Block6 Pole Screw terminal block, clamp with wire protector, right angle -
-
KRESS0704 | KRESS 07/04 | Terminal Block4 Pole Screw terminal block, clamp with wire protector (1000 V) -
-
-
KRESS0905 | KRESS 09/05 | Terminal Block5 Pole Screw terminal block, clamp with wire protector (1000 V), Upright -
KRESS10 | KRESS 10 | Terminal block10 Pole Screw terminal block, clamp with wire protector, Upright
