Terminal Blocks
PCB terminal blocks and PCB connectors
- With screw, spring, insulation displacement, pierce or crimp connection
- For currents up to 232 A and voltages up to 1000 V
- For conductor cross-sections from 0.14 to 95 mm2
- PCB terminal block for two to 24 positions
- Various pitches (2.5 to 20 mm) and numbers of positions
- Locking by means of latch mechanism systems or screw flanges
- For transmission of signals, data and power to the PCB
- Maximum reliability thanks to high material quality
-
KRESL04 | KRESL 04 | Terminal Block4 Pole Screw terminal block, clamp with wire protector, right angle -
KRESL05 | KRESL 05 | Terminal Block5 Pole Screw terminal block, clamp with wire protector, right angle -
KRESL0503 | KRESL 05/03 | Terminal Block3 Pole Screw terminal block, clamp with wire protector (1000 V) 90° angular -
KRESL06 | KRESL 06 | Terminal Block6 Pole Screw terminal block, clamp with wire protector, right angle -

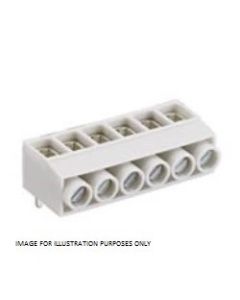

KRESL07 | KRESL 07 | Terminal Block7 Pole Screw terminal block, clamp with wire protector, right angle -
KRESL0704 | KRESL 07/04 | Terminal Block4 Pole Screw terminal block, clamp with wire protector (1000 V) 90° angular -
KRESL08 | KRESL 08 | Terminal Block8 Pole Screw terminal block, clamp with wire protector, right angle -

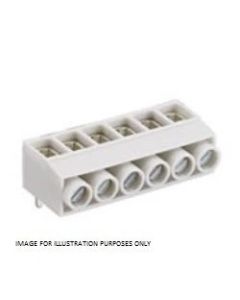

KRESL09 | KRESL 09 | Terminal Block9 Pole Screw terminal block, clamp with wire protector, right angle -
KRESL10 | KRESL 10 | Terminal Block10 Pole Screw terminal block, clamp with wire protector, right angle -
KRESL12 | KRESL 12 | Terminal Block12 Pole Screw terminal block, clamp with wire protector, right angle -
KRESL16 | KRESL 16 | Terminal Block16 Pole Screw terminal block, clamp with wire protector, Right Angle -
