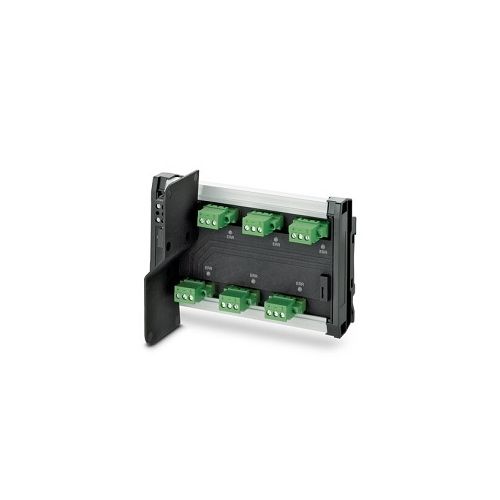

FB-6SP | 2316307 | Device Coupler
Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for six spurs connected to fieldbus end devices
| Complete Electronics Part No. | 2316307 |
|---|---|
| Manufacturers Part No. | 2316307 |
| Ethernet Product Type: | Device Coupler |
Description
Device Coupler - FB-6SP
- Terminator preinstalled
- Provides current limiting short-circuit protection per spur
- Access to high-level language applications via HFI
- Ex nA [nL, Ex nA [ic] or FISCO ic spur connectionsPower Suppy Connection: Via PCI Bus
- Connect up to 6 Foundation Fieldbus or PROFIBUS PA field devices
- Single-sided plug configuration eliminates cable bend radius issues
- EMC: class A product
- Supply Voltage Range: 10.5 V DC ... 32 V DC (input on trunk line side)
- Typical Current Consumption: 4.8 mA
- Data: Foundation Fieldbus and PROFIBUS PA Segment
- 6 x (EN 61131-2 type 1) Digital Inputs
- Width: 148.2 mm
- Height: 112.5 mm
- Depth: 83.5 mm
- Ingress Protection: IP20
- DIN Rail Mounting
- Weight Per piece (not including packing): 322.5 g
- Part Number: 2316307
- Customs tariff number:85369095
- Country of origin: US
