FB-HSB | 2316379 | Converter
Head station for monitoring one PROFIBUS network, can drive up to ten individual PROFIBUS DP or PROFIBUS PA modules
| Complete Electronics Part No. | 2316379 |
|---|---|
| Manufacturers Part No. | 2316379 |
| Ethernet Product Type: | Converter |
Description

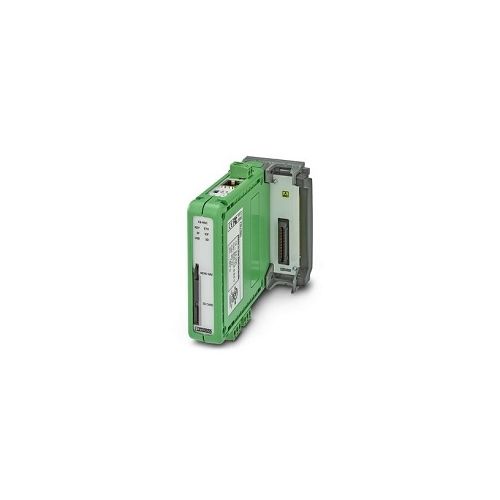

Converter - FB-HSB
- Embedded web server for configuration and access to network diagnostics
- One communication interface module can drive up to ten individual PROFIBUS DP or PROFIBUS PA modules
- Auto detect any baud rate up to 12 Mbps transparently
- One-network head station unit (FB-HSB),
- Supply Voltage Range: 10.8....26.4 V DC
- Max Current Consumption: 800mA
- Connection Method: RJ45 x 1
- Width: 25 mm
- Height: 100 mm
- Depth: 132 mm
- Colour: Green
- DIN Rail Mounting
- UL 508 Listed
- Ingress Protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight Per piece (not including packing):887 g
- Part Number: 2316379
- Customs tariff number:85176200
