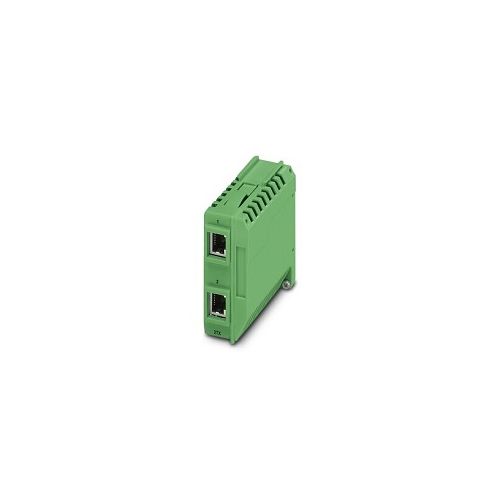

FL IF 2TX VS-RJ-F | 2832344 | Media Module
Interface module for connecting twisted pair cable, RJ45, connection direction forward
| Complete Electronics Part No. | 2832344 |
|---|---|
| Manufacturers Part No. | 2832344 |
Description
Interface Module
For connecting TP cable, RJ45, connection direction forward
- Supply Voltage via head station
- Power Supply Connection: From FL SWITCH GHS or FXT
- Connection Method: RJ45 (Direction Forward)
- Transmission Speed: 10/100 Mbps
- Transmission Length: 100 m (per segment)
- EMC: class A product
- No of Channels: 2
- Typical current consumption: 10 mA
- Degree of protection: IP20
- Operating Temperature: -20°C ... 55°C (non-condensing)
- Flammability rating according to UL 94: V0
- Width: 31mm
- Height: 75.7mm
- Depth: 72.5mm
- Colour: Green
- Weight per Piece (excluding packing): 70 g
- Part Number 2832344
- Customs tariff number: 85176200
- Country of origin: DE
