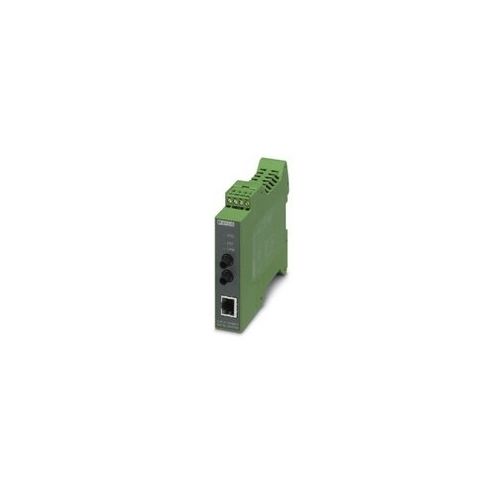

FL MC EF 1300 MM ST | 2902854 | FO Converter
FO converter with B-FOC (ST®) fiber optic connection (1300 nm), for converting 10/100Base-T(X) to multi-mode fiberglass (50/125 µm)
More Information
Complete Electronics Part No.
2902854
Manufacturers Part No.
2902854
Phoenix Ethernet Series:
FO Converters TX - FO
Total 10/100 (RJ45) Ports
1
Total Ethernet Ports
2
FX (Optical) Connector Type:
ST (B-FOC) x 1
FX (Optical) Cable Type:
Multi Mode (MM)
IP Rating:
IP20
Description
FO converter with B-FOC (ST®) FO connection (1300 nm)
For converting 10/100Base-T(X) to multi mode fiberglass (50/125 µm)
Auto negotiation
Auto MDI(X) function
Comprehensive link diagnostics
Store and forward media converter
Transmission speed: 10/100 Mbps (RJ45 shielded)
DIN-rail mountable
Supply Voltage: 18...30 V DC
Power Connection method: Plug-in screw terminal block (COMBICON), redundancy possible
Multi-mode fiberglass / GI-HCS
Fibre Types: 50/125 µm, 62.5/125 µm, Fiberglass
Transmission ranges up to 10 km
Fibre Connector: ST
Signal LED's: Activity, link status, 10/100 Mbps
Typical current consumption: 100 mA (at 24 V DC)
Reverse polarity protection
Width: 22.5mm
Height: 99mm
Depth: 114.5mm
Housing material: PA 6.6-FR
Colour: Green
Ingress protection: IP20
Operating Temperature: -40 °C ... 65 °C
Weight per Piece (excluding packing): 172.2 g
Part Number 2902854
Customs tariff number: 85176200
Country of origin: DE
