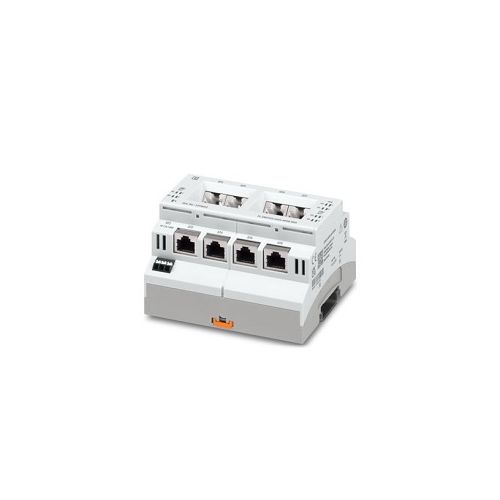

FL SWITCH 1104-4PoE REG | 1473642 | Ethernet Switch
Unmanaged Switch 1000 REG, 4 x RJ45 PoE ports 10/100/1000 Mbps, REG design in accordance with DIN 43880, Auto negotiation, Autocrossing
| Complete Electronics Part No. | 1473642 |
|---|---|
| Manufacturers Part No. | 1473642 |
| Phoenix Ethernet Series: | Unmanaged Switch 1000 REG |
| Managed / Unmanaged: | Unmanaged |
| Total 10/100/1000 (RJ45) Ports: | 4 |
| Number Of PoE Ports: | 4 |
| Total Ethernet Ports: | 4 |
| IP Rating: | IP20 |
Description
FL SWITCH 1104-4PoE REG
Unmanaged PoE Ethernet Switch
Ethernet (RJ45)
Transmission speed: 10/100/1000 Mbps
RJ45 jack x 4 (PoE)
Transmission length: 100 m (per segment)
Signal LED's: Link, Activity, PoE
Auto negotiation and Auto Crossing
Store and Forward switching mode
Ethernet (Optical)
N/A
Functions
Unmanaged switch
Store and Forward switching mode
Supply voltage: 54V DC
Supply voltage range: 48 V DC ... 55 V DC
Power supply connection: Spring-cage connection
Max current consumption: 2.5 A (at Us = 52 V DC, data transmission 1 Gbps)
Degree of protection: IP20
Operating Temperature: 5°C ... 50°C
REG design in accordance with DIN 43880
Approvals:
Dimensions
Width: 108mm
Height: 90mm
Depth: 62mm
Housing Material: Polycarbonate
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 208 g
Part Number: 1473642
GTIN: 4063151884864
Customs Tariff Number: 85176200
Minimum Order Quantity: 1pc.
Country Of Origin: TW
