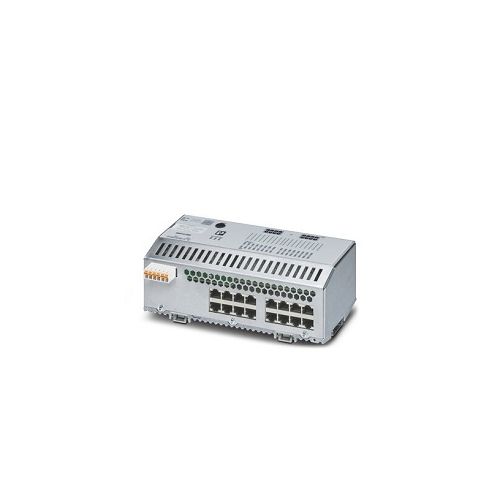

FL SWITCH 2416 | 1043416 | Ethernet Switch
DIN Rail mount Managed Switch 2000, 16 RJ45 ports 10/100 Mbps, PROFINET Conformance-Class B
| Complete Electronics Part No. | 1043416 |
|---|---|
| Manufacturers Part No. | 1043416 |
| Phoenix Ethernet Series: | Managed Switch 2000 |
| Managed / Unmanaged: | Managed |
| Total 10/100/1000 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 16 |
| IP Rating: | IP20 |
Description
DIN Rail mount Industrial Ethernet switch
16 x RJ45 ports 10/100/1000 Mbps
PROFINET Conformance-Class B
Auto negotiation and autocrossing
Transmission Length: 100m (per segment)
MRP (client and manager)
RSTP
VLANs
DHCP client, DHCP server (pool-based and port-based), DHCP option 82
Web-based management, SNMP
Configuration Memory
Signal LED's: Data receive, link status
Suitable for PROFINET and EtherNet/IP™ networks
Power Supply Connection: Via COMBICON, max. conductor cross section 2.5 mm²
Connection Method: Push-in spring connection
Supply Voltage: 24 V DC (Redundant)
Supply Voltage Range: 19.2 V DC....32 V DC
Typical Current Consumption: 280 mA
Signal contact control voltage: 24 V DC (Typical)
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Base Plate Material: Die-cast aluminum, corrosion-resistant
Housing: Stainless steel 1.4301
Width: 214mm
Height: 110mm
Depth: 69mm
Ingress Protection: IP20
Mounting Type: DIN Rail
Weight per Piece (excluding packing): 1035 g
Part Number 1043416
GTIN: 4055626611617
Customs tariff number: 85176200
Country of origin: DE
