GAN-DAFE7A-AG0500C1-XC607-AC | 934562005 | Cordset
£4.00
Part Number 934 562-005 (150 in stock)

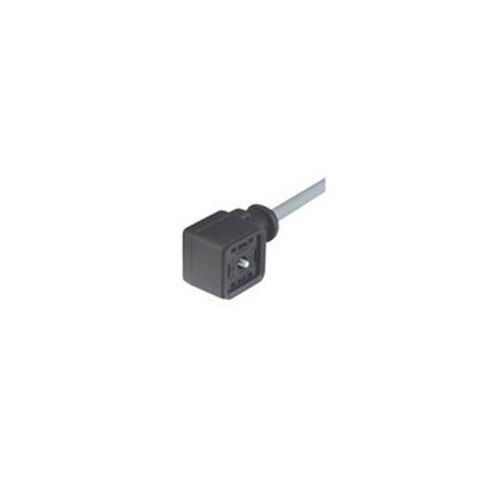

DIN 43650 - 2 Pole + Earth cable socket with integrally moulded lead (5m), gasket (captive) and central screw M3, Form A
| Complete Electronics Part No. | 934 562-005 |
|---|---|
| Manufacturers Part No. | 934562005 |
| Type: | Moulded with lead |
| Voltage: | AC/DC 250V |
| Number of poles | 2+PE |
| Valve Connector Form | A |
| Cable Jacket: | PUR |
| IP Rating: | IP65 / 67 |
Description
GAN-DAFE7A-AG0500C1-XC607-AC
NO LONGER AVALIABLE, REPLACEMENT PART GAN22LU-A0U-6090500 - 934 889-082
Cable socket with integrally moulded lead
- Gasket (captive) and central screw M3
- Cable length 5m
- Number of contacts 2 + PE
- Cable material PVC
- Cable color grey
- Cable diameter 5.5 mm
- Conductor size 0.75 mm2
- Cable specification LiYY 3G x 0.75 mm
- Standard DIN EN 175 301-803-A
- Color of Housing black
- Construction type A
