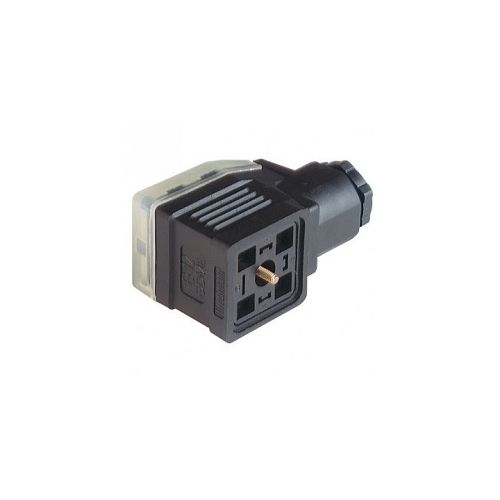

GDME 3020 Black | 934455100 | Connector
DIN 43650 - 3 Pole + Earth, Cable socket with central screw M3 x 40, strain relief and transparent cover, possibility to fit electronic inserts, M20, Form A
| Complete Electronics Part No. | 934 455-100 |
|---|---|
| Manufacturers Part No. | 934455100 |
| Type: | Cable Socket |
| Voltage: | AC 400V / DC 250V Without Insert |
| Number of poles | 3+PE |
| Cable Gland Size: | M20 |
| Valve Connector Form | A |
| Termination: | Screw |
| IP Rating: | IP65 |
Description
GDME 3020 Black
Valve Connector 3 pole + Earth
- Cable gland: M20
- Form A
- Cable socket with central screw M 3 x 40
- Strain relief and transparent cover
- Possibility to fit electronic inserts
- Suitable cables: 8 mm to 14 mm diameter
- Rated current: 16 A
- Rated voltage: AC 400 V, DC 250 V without inserts
