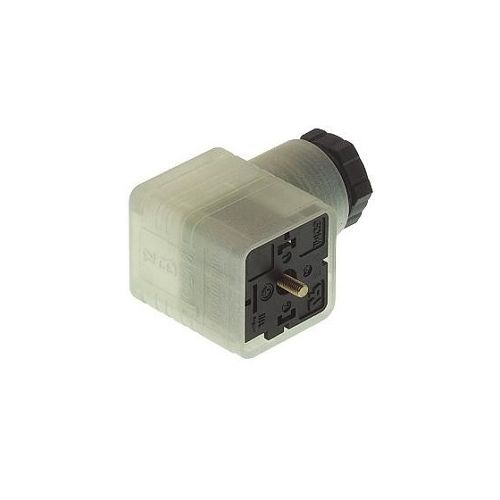

GDML 3011 LED 24 RG | 932857002 | Connector
DIN 43650 - 3 Pole + Earth Cable Socket, Function indicator (glow lamp), 2 LED`s, (Green and Red) for pressure switch, PG11, Form A
| Complete Electronics Part No. | 932857002 |
|---|---|
| Manufacturers Part No. | 932-857-002 |
| Type: | Cable Socket |
| Voltage: | DC 24 V |
| Number of poles | 3+PE |
| Cable Gland Size: | PG11 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | For Pressure Switch |
| Led Colour: | Red / Green |
| IP Rating: | IP65 |
Description
GDML 3011 LED 24 RG
Valve Connector 3 pole + Earth
- PG 11
- Form A
- Function indicator (glow lamp) (2 LED`s) for pressure switch
- Suitable cables: 4.5 mm to 11 mm diameter
- Rated current: 8 A
- Rated voltage:DC 24 V
