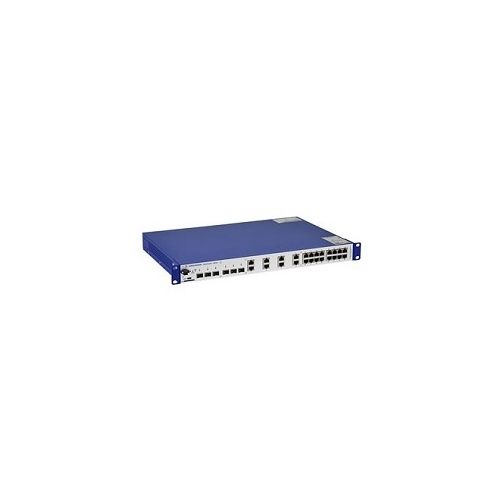

GRS106-16TX/14SFP-1HV-2A | 942287010 | Ethernet Switch
GREYHOUND 105/106, 30 Ports in total, 6x GE/2.5GE/10GE SFP(+) slot + 8x GE/2.5GE SFP slot + 16x FE/GE TX ports, fanless design, 19" rack mount,
| Complete Electronics Part No. | 942287010 |
|---|---|
| Manufacturers Part No. | 942287010 |
| Total 100/1000 (TX) Ports: | 16 |
| Total 2.5GE ports: | 8 |
| Total 10GE Ports: | 6 |
| Total Ethernet Ports: | 30 |
Description
GRS106-6F8F16TSG9Y9HHSE2A99XX.X.XX)
- Managed Industrial Switch
- Fanless design
- 19" rack mount,
- Can be used as a backbone switch
- Ability to select the device’s port count and type
- 6x GE/2.5GE/10GE SFP(+) slot
- 8x GE/2.5GE SFP slot
- 16x FE/GE TX ports
- 30 ports in total
- Operating Voltage: 110 - 240 VAC, 50 Hz - 60 Hz
- Power supply input 1: IEC plug,
- Signal contact: 2 pin plug-in terminal block
- 1 x SD card slot to connect the auto configuration adapter ACA31
- 1 x USB-C (client) for local management
- Power supply input 1: 110 - 240 VAC, 50 Hz - 60 Hz
- Power Consumption: with one power supply max. 35W
- Operating temperature -10-+60 °C
- Width: 444 mm
- Height: 44 mm
- Depth: 355 mm
- Weight: 5 Kg (estimated)
- Ingress Protection: IP20
- Part Number: 942287010
Accessories available to order:-
- Network Management Industrial HiVision, ACA31, SFP/SFP+
Link to Greyhound 105/106 configurator HERE
