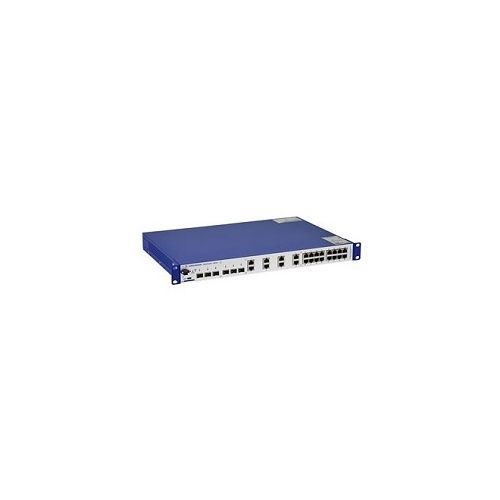

GRS106-16TX/14SFP-2HV-2A| 942287011 | Ethernet Switch

30 Ports in total, 6x GE/2.5GE/10GE SFP(+) slot + 8x GE/2.5GE SFP slot + 16x FE/GE TX ports, 2 x PSU
More Information
Complete Electronics Part No. 942287011
Manufacturers Part No. 942287011
Total 100/1000 (TX) Ports: 16
Total 2.5GE ports: 8
Total 10GE Ports: 6
Total Ethernet Ports: 30
Description

GRS106-6F8F16TSGGY9HHSE2A99XX.X.XX

  • Managed Industrial Switch
  • Fanless design
  • 19" rack mount,
  • Can be used as a backbone switch
  • Ability to select the device’s port count and type
  • 6x GE/2.5GE/10GE SFP(+) slot
  • 8x FE/GE/2.5GE TX ports
  • 16x FE/GE TX ports
  • 30 ports in total
  • Operating Voltage: 110 - 240 VAC, 50 Hz - 60 Hz (x 2)
  • Power supply input 1: IEC plug,
  • Power supply input 2: IEC plug
  • Signal contact: 2 pin plug-in terminal block
  • 1 x SD card slot to connect the auto configuration adapter ACA31
  • 1 x USB-C (client) for local management
  • Power supply input 1: 110 - 240 VAC, 50 Hz - 60 Hz
  • Power Consumption: with one power supply max. 35W
  • Operating temperature -10-+60 °C
  • Width: 444 mm
  • Height: 44 mm
  • Depth: 355 mm
  • Weight: 5 Kg (estimated)
  • Ingress Protection: IP20
  • Part Number: 942287011



Accessories available to order:-

  • Network Management Industrial HiVision,  ACA31,  SFP/SFP+

Link to Greyhound 105/106 configurator HERE
