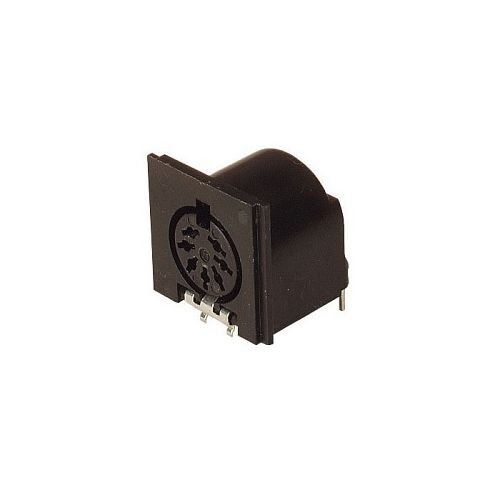

MAB 7 SH-L | 930518500 | 7 Pin DIN Socket
£1.54
Part Number 930518500 (126 in stock)
7 Pin DIN Female Panel Mounted Socket for PCBs
| Complete Electronics Part No. | 930518500 |
|---|---|
| Manufacturers Part No. | 930 518-500 |
| Type: | DIN Socket |
| Number of poles | 7 |
| Shielding: | Not Shielded |
| Termination: | Solder |
| Mounting: | Panel Mount |
| PCB Connector Mounting | PCB Right Angled |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45329 |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAB 7 SH-L
Panel-mounted Din socket for PCBs, un-shielded
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint
- Plug-in direction parallel to the PCB, recommended board thickness 1.5 mm
- Additional fixing with screws (not supplied)
- Female, 7 pole
- Rated voltage AC/DC 34 V
- Rated current 4 A
