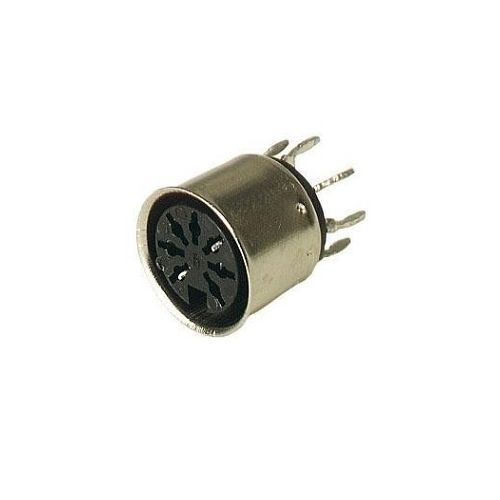

MAB 7 SV | 931657200 | 7 Pin DIN Socket
7 Pin DIN Female Panel Mounted Socket for PCBs ***Discontinued***
| Complete Electronics Part No. | 931657200 |
|---|---|
| Manufacturers Part No. | 931 657-200 |
| Type: | DIN Socket |
| Number of poles | 7 |
| Termination: | PCB Mount |
| Mounting: | Panel Mount |
| PCB Connector Mounting | PCB Straight |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45329 |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAB 7 SV
Panel-mounted socket for PCBs
- Plug-in direction parallel to the PCB
- Solder joint.
- Female, 7 pole.
- Rated voltage: AC/DC 34 V.
- Rated: current 4 A.
**This product is being discontinued***
Last Order Date June 30th 2022
