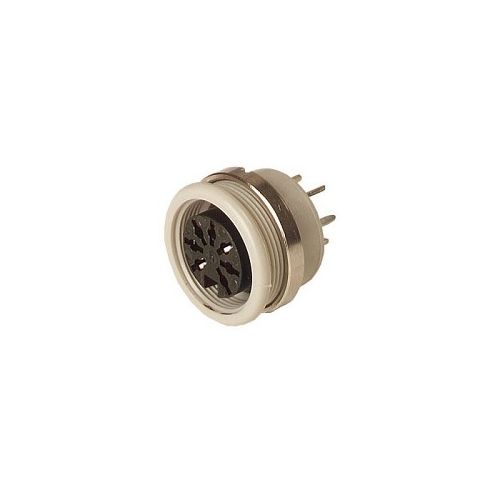

MAB 7100 SV | 932423517 | 7 Pin DIN Socket
7 Pin DIN Female Panel Mounted Socket with locking ring for PCB mounting
| Complete Electronics Part No. | 932423517 |
|---|---|
| Manufacturers Part No. | 932 423-517 |
| Type: | DIN Socket |
| Number of poles | 7 |
| Shielding: | Not Shielded |
| Termination: | PCB Mount |
| Mounting: | Panel Mount with Locking Ring |
| PCB Connector Mounting | PCB Straight |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45329 |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAB 7100 SV
Panel-mounted socket with locking ring
- For PCB mounting
- Solder joint
- Un-shielded.
- Female
- 7 pole.
- Rated voltage: AC/DC 34 V.
- Rated current: 4 A.
