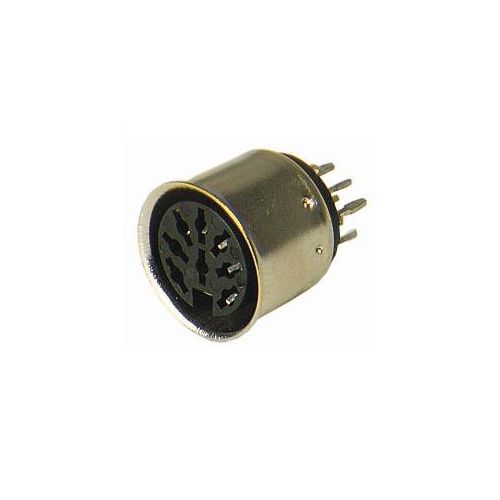

MAB 8 SV | 931735200 | 8 Pin DIN Socket
£0.75
Part Number 931735200 (2 in stock)
8 Pin DIN Female Panel Mounted Socket for PCBs ***Discontinued***
| Complete Electronics Part No. | 931735200 |
|---|---|
| Manufacturers Part No. | 931 735-200 |
| Type: | DIN Socket |
| Number of poles | 8 |
| Termination: | Solder |
| Mounting: | Panel Mount |
| PCB Connector Mounting | PCB Straight |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 41524 |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAB 8 SV
Panel-mounted socket for PCBs
- Plug-in direction parallel to the PCB
- Solder joint.
- Female
- 8 pole.
- Rated voltage: AC/DC 34 V.
- Rated: current 4 A.
***This product is being discontinued***
Last Order Date June 30th 2022
