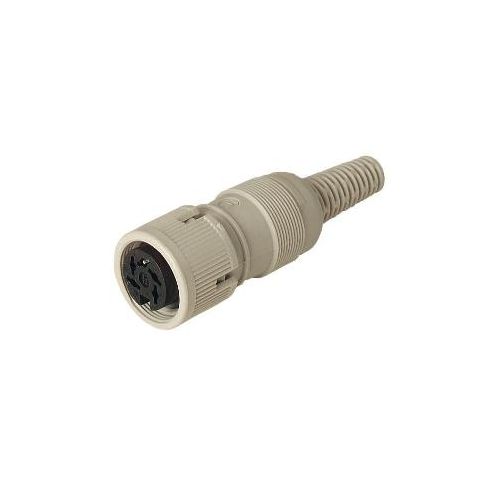

MAK 4100 UM Grey | 931175117 | 4 Pin DIN Socket
4 Pin DIN Straight Socket
| Complete Electronics Part No. | 931175117 |
|---|---|
| Manufacturers Part No. | 931 175-117 |
| Type: | DIN Socket |
| Number of poles | 4 |
| Termination: | Solder |
| Mounting: | Cable Mount with Locking Ring |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 41524 |
| Cable Entry: | Straight |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAK 4100 UM Grey
Socket with locking ring
***This product is being discontinued***
Last Order Date: June 30th 2024
- Solder joint.
- Female
- 4 pole.
- Cable diameter: 5.5 mm
- Rated voltage: AC/DC 34 V
- Rated current: 4 A.
