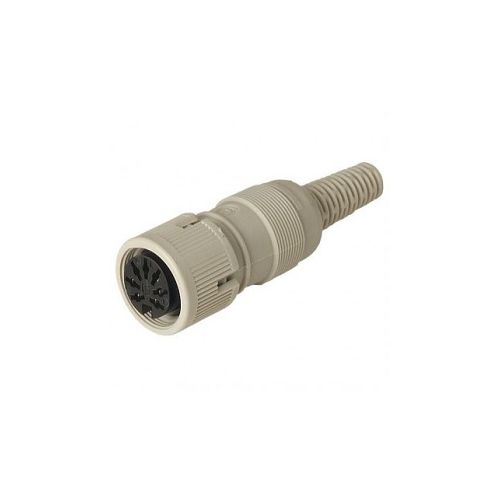

MAK 7100 S UM | 930690117 | 7 Pin DIN Socket
7 Pin DIN Straight Socket
| Complete Electronics Part No. | 930690117 |
|---|---|
| Manufacturers Part No. | 930 690-117 |
| Type: | DIN Socket |
| Number of poles | 7 |
| Termination: | Solder |
| Mounting: | Cable Mount with Locking Ring |
| Socket / PIN | PIN |
| Pole Arrangement DIN | DIN 45329 |
| Cable Entry: | Straight |
| Rated Voltage: | 34V |
| Rated Current: | 4A |
| IP Rating: | IP30 |
Description
MAK 7100 S UM
Socket with locking ring
- Solder joint.
- Female
- 7 pole.
- Cable diameter: 5.5 mm,
- Rated voltage: AC/DC 34 V,
- Rated current: 4 A
