Micro BNC (HD BNC) 75 ohm
Micro BNC 75 ohm Connectors
- Designed for HD & UHD Broadcast, Telecom, HDcctv, Instrumentation and similar applications
- High performance in an high density package.
- The unique patented coupling nut allows the use of a special tool to disconnect the connectors when they are closely mounted.
- Tested to beyond 12GHz and exceeding the requirements of SMPTE ST 2082-1, these connectors are used in Full HD1080p (3G), HD-SDI and are fit for Ultra HD 4K (12G) applications.
- With a diameter of only 7.8 mm, mounting density is increased by 4 times when compared with a standard BNC.
-

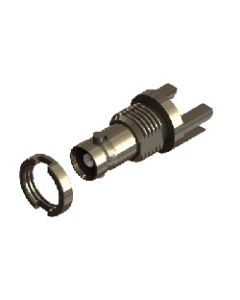

67-463-B126 1.6mm | 67463B1261.6mm | Micro BNC PCB Mount JackMicro BNC True 75 ohm end launch Bulkhead jack for 1.6mm PCB, Designed for HD & UHD Broadcast, Telecom, HDcctv -

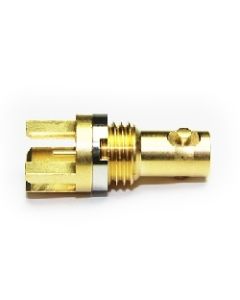

67-463-D66 1.0mm | 67463D661.0mm | Micro BNC PCB Mount JackMicro BNC True 75 ohm end launch Bulkhead jack for 1.0mm PCB, Designed for HD & UHD Broadcast, Telecom, HDcctv **Tested to 18GHz** -
67-463-D66 1.6mm | 67463D661.6mm | Micro BNC PCB Mount JackMicro BNC True 75 ohm end launch Bulkhead jack for 1.6mm PCB, Designed for HD & UHD Broadcast, Telecom, HDcctv **Tested to 18GHz** -
67-463-D66 1.9mm | 67463D661.9mm | Micro BNC PCB Mount JackMicro BNC True 75 ohm end launch Bulkhead jack for 1.9mm PCB, Designed for HD & UHD Broadcast, Telecom, HDcctv **Tested to 18GHz** -
67-463-D66 2.1mm | 67463D662.1mm | Micro BNC PCB Mount JackMicro BNC True 75 ohm end launch Bulkhead jack for 2.1mm PCB, Designed for HD & UHD Broadcast, Telecom, HDcctv **Tested to 18GHz** -

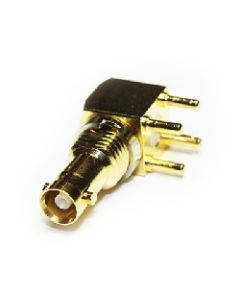

67-468-1-D66 | 674681D66 | Micro BNC R/A PCB Mount JackMicro BNC Right Angle PCB Mount Bulkhead Jack 12GHz True 75ohm (15µin Au pin) Leg Lenght 3.1mm **Tested to 18GHz** -
67-468-2-D66 | 674682D66 | Micro BNC R/A PCB Mount JackMicro BNC Right Angle PCB Mount Bulkhead Jack 12GHz True 75ohm (15µin Au pin) Leg Lenght 2mm **Tested to 18GHz** -

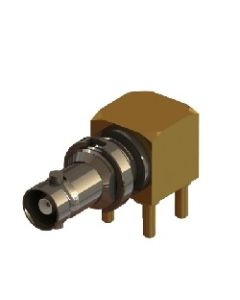

67-468-3-B66 | 674683B66 | Micro BNC R/A PCB Mount JackMicro BNC Right Angle PCB Mount Bulkhead Jack 12GHz True 75ohm, gold plated inner and Nickel Plated outer contacts and Gold Plated PCB body Tested to 18GHz
-
67-468-3-D66 | 674683D66 | Micro BNC R/A PCB Mount JackMicro BNC Right Angle PCB Mount Bulkhead Jack 12GHz True 75ohm, With gold plated inner and outer contacts **Tested to 18GHz** -

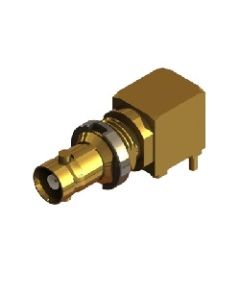

67-468-4-D66 | 674684D66 | Micro BNC R/A PCB Mount JackMicro BNC Right Angle PCB Mount Bulkhead Jack 12GHz True 75ohm, 3 x 2mm long legs and is Only 6.3mm Wide **Tested to 18GHz** -

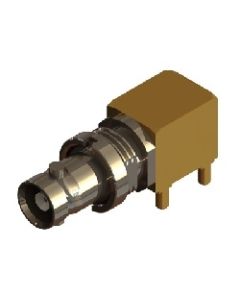

67-468-5-B126 | 674685B126 | Micro BNC R/A PCB Mount JackMicro BNC Right Angle PCB Mount Bulkhead Jack 12GHz True 75ohm, and is Only 5.9mm Wide **Tested to 18GHz** -

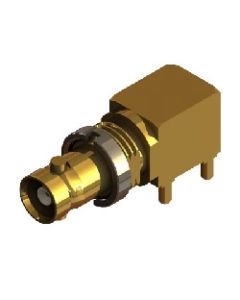

67-468-5-D126 | 674685D126 | Micro BNC R/A PCB Mount JackMicro BNC Right Angle PCB Mount Bulkhead Jack 12GHz True 75ohm, and is Only 5.9mm Wide **Tested to 18GHz**
