MCX Miniature Connectors
Feature a snap together interface
- Are suitable for applications up to 6 GHz,
- They conform to IEC 61169-36 and CECC 22220 standards.
- MCX have interface dimensions similar to SMB with a body size around 30% smaller
- Ideal for antenna and board connections where space or weight is important.
- Applications include GPS, Automotive, Handheld devices, and Data Telemetry.
-

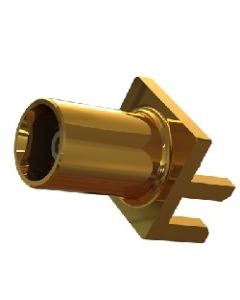

45-410-D66-1.6 | 45410D6616 | MCX PCB Mount Jack 1.6mmMCX 75 ohm Edge Mount Jack, with gold plated body and contact, solder to board. -

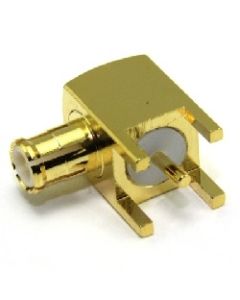

45-411-D3 | 45411D3 | MCX PCB Mount Jack R/AMCX 50 ohm low profile right angle PCB plug, with gold plated body and contact, solder to board. 1.7mm -

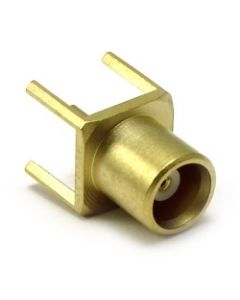

45-450-D3 | 45450D3 | MCX PCB Mount JackMCX 50 ohm straight PCB solder jack with gold plated body and contact, solder to board. -

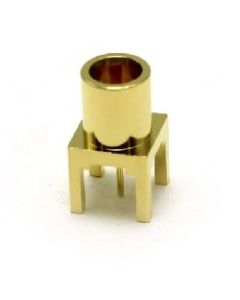

45-450-D6 | 45450D6 | MCX PCB Mount JackMCX 75 ohm straight PCB solder jack with gold plated body and contact, solder to board. -

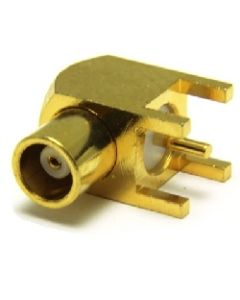

45-465-D3 | 45465D3 | MCX PCB Mount Jack R/AMCX 50 ohm right angle PCB solder jack, with gold plated body and contact, solder to board. -

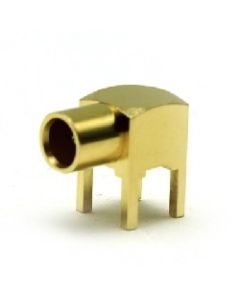

45-465-D6 | 45465D6 | MCX PCB Mount Jack R/AMCX 75 ohm right angle PCB solder jack, with gold plated body and contact, solder to board.
