MCX Miniature Connectors
Feature a snap together interface
- Are suitable for applications up to 6 GHz,
- They conform to IEC 61169-36 and CECC 22220 standards.
- MCX have interface dimensions similar to SMB with a body size around 30% smaller
- Ideal for antenna and board connections where space or weight is important.
- Applications include GPS, Automotive, Handheld devices, and Data Telemetry.
-

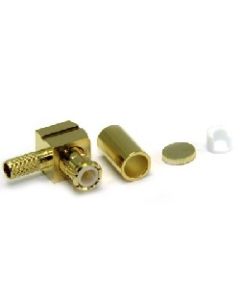

45-105-D3-AE | 45105D3AE | MCX R/A Solder / Crimp PlugMCX 50 ohm solder / crimp plug, right angle with soldered centre contact and crimped braid, suitable for use with RD316 and similar cables in group AE. -

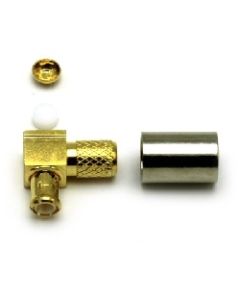

45-105-D3-AH | 45105D3AH | MCX R/A Solder / Crimp PlugMCX 50 ohm solder / crimp plug right angle with soldered centre contact and crimped braid, suitable for use with RG58 and similar cables in group AH. -

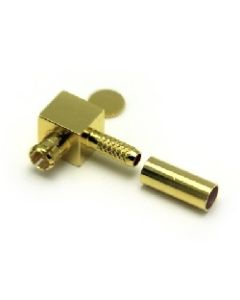

45-105-D6-AB | 45105D6AB | MCX R/A Solder / Crimp PlugMCX 75 ohm solder / crimp Plug right angle with soldered centre contact and crimped braid, Suitable for use with RG179 and similar cables in group AB. -

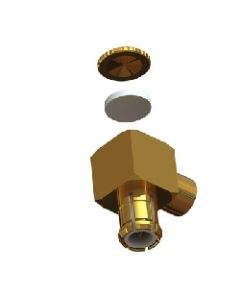

45-108-1-D3-HA | 451081D3HA | MCX R/A Solder / Solder PlugMCX 50 ohm right angle plug ( Without Slots For Extraction Tooling )for direct solder to semi-rigid cables in group HA. -

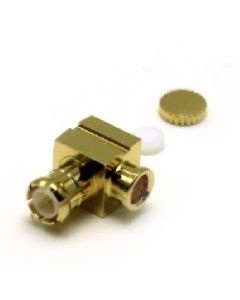

45-108-D3-HA | 45108D3HA | MCX R/A Solder / Solder PlugMCX 50 ohm right angle plug for direct solder to 0.085" semi-rigid cables in group HA. -

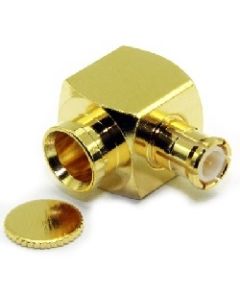

45-108-D3-HB | 45108D3HB | MCX R/A Solder / Solder PlugMCX 50 ohm right angle plug for direct solder to RG402 semi-rigid (0.141") and similar cables in group HB. -

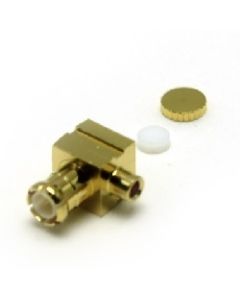

45-108-D3-HD | 45108D3HD | MCX R/A Solder / Solder PlugMCX 50 ohm right angle plug for direct solder to 0.47 semi-rigid cables in group HD. -

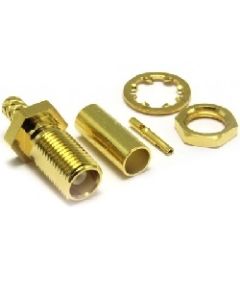

45-254-D3-AD | 45254D3AD | MCX Bulkhead Crimp JackMCX 50 ohm rear mount bulkhead crimp cable jack, with gold plated body and contact. Suitable for use with flexible cables in group AD. -

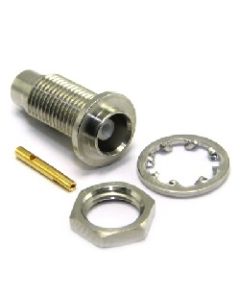

45-347-Q3-HA | 45347Q3HA | MCX Bulkhead Solder JackMCX 50 ohm straight bulkhead jack, rear mount for direct solder to semi-rigid cables in group HA, White bronze plated body
-

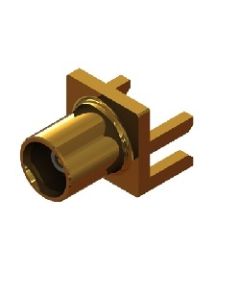

45-410-1-D3-1.6 | 454101D316 | MCX PCB Mount Jack 1.6mmMCX 50 ohm Edge Mount Jack, to suit a 1.6 mm PCB with a nose of 5.1mm , with gold plated body and contact, solder to board. -

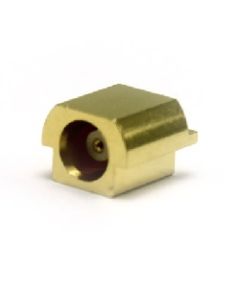

45-410-D3 | 45410D3 | MCX PCB Mount JackMCX 50 ohm End Launch Jack, with gold plated body and contact, solder to board. -

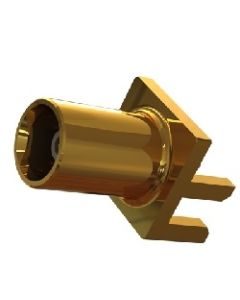

45-410-D3-1.6 | 45410D316 | MCX PCB Mount Jack 1.6mmMCX 50 ohm Edge Mount Jack, with gold plated body and contact, solder to board.
