Cable Entry Plates for Cables without Connectors
-

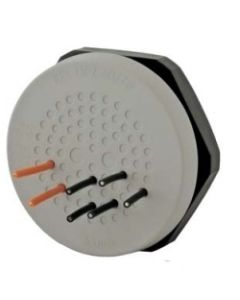

50752 | KEL-DPZ 50/12 Black | Cable Entry PlateKEL DPZ Round entry plates, To route and seal up to 12 cables, Metric Thread: M50 x 1.5, max cable diameter 10.2mm, cut-out size M50
-
50756 | KEL-DPZ 50/78 Black | Cable Entry Plate
KEL DPZ Round entry plates, To route and seal up to 78 cables, Metric Thread: M50 x 1.5, max cable diameter: 5mm, cut-out size M50
-
50758 | KEL-DPZ 50/19 Black | Cable Entry Plate
KEL DPZ Round entry plates, To route and seal up to 19 cables, Metric Thread: M50 x 1.5, max cable diameter: 6.5mm, cut-out size: M50
-
50760 | KEL-DPZ 63/9 Black | Cable Entry Plate
KEL DPZ Round entry plates, To route and seal up to 9 cables, Metric Thread: M63 x 1.5, Max cable diameter: 22.2mm, cut-out size M63
-
50761 | KEL-DPZ 63/13 Black | Cable Entry Plate
KEL DPZ Round entry plates, To route and seal up to 13 cables, Metric Thread: M63 x 1.5, Max cable diameter: 16.2mm, cutout size M63
-
50762 | KEL-DPZ 63/14 Black | Cable Entry Plate
KEL DPZ Round entry plates, To route and seal up to 14 cables, Metric Thread: M63 x 1.5, Clamping range: 14 x 5 - 10.2 mm cut out size M63
-
50763 | KEL-DPZ 63/35 Black | Cable Entry Plate
KEL DPZ Round entry plates, To route and seal up to 35 cables, Metric Thread: M63 x 1.5, fasten with locknut, Clamping range: 35 x 3.2 - 6.5 mm
-
50780 | KEL-DPZ-E 112/7 Black | Cable Entry PlateKEL DPZ-E Cable entry plates, To route and seal up to 7 cables, Dimensions: 147 x 29mm, screw type mounting, max cable diameter: 12mm
-
50790 | KEL-DPZ-E 112/21 Black | Cable Entry PlateKEL DPZ-E Cable entry plates, To route and seal up to 21 cables, Dimensions: 147 x 29mm, Max cable diameter: 6.5mm
-
50794 | KEL-DPZ-B-13 Black | Cable Entry PlateKEL DPZ-B Cable entry plates, To route and seal up to 13 cables, Dimensions: 72.80 x 58mm, Screw type mounting, cut out size 46 x 46mm
-
50796 | KEL-DPZ-B-17 Black | Cable Entry PlateKEL DPZ-B Cable entry plates, To route and seal up to 17 cables, Dimensions: 72.80 x 58mm, cut out size 46 x 46mm
-
50798 | KEL-DPZ-B-25 Black | Cable Entry PlateKEL DPZ-B Cable entry plates, To route and seal up to 25 cables, Dimensions: 72.80 x 58mm Cut out size: 46 x 46mm
