Lumberg Automation M12 Connectors

Download
pubLumberg_M12_Connectors_1.pdf
Download

Items 937-948 of 1577

Set Descending Direction
  1. RST 4-251/2 M | 11811 | Cordset
    RST 4-251/2 M | 11811 | Cordset
    Actuator/Sensor Cordset, Single ended. M12 Male. 4 Pole. 2metres
  2. RST 4-251/5 M | 11812 | Cordset
    RST 4-251/5 M | 11812 | Cordset
    Actuator/Sensor Cordset, Single ended, M12 male, 4 pole, 5m
  3. RST 4-602/10 M | 55304 | Cordset
    RST 4-602/10 M | 55304 | Cordset
    Actuator/Sensor Cordset, M12 Duo male connector with one M12 male connector (0.2 Metre) and one M12 female connector, 5 pole, cable length 10 metres
  4. RST 4-602/2 M | 46615 | Cordset
    RST 4-602/2 M | 46615 | Cordset
    M12 Duo male connector with one M12 male connector (0.2 Metre) and one M12 female connector, 5 pole, cable length 1 metre

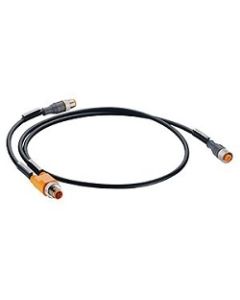

  5. RST 4-602/5 M | 26875 | Cordset
    RST 4-602/5 M | 26875 | Cordset
    Actuator/Sensor Cordset, M12 Duo male connector with one M12 male connector (0.2 Metre) and one M12 female connector, 5 pole, cable length 5 metres
  6. RST 4-RKT 4-225/0,2 M | 59619 | Cordset
    RST 4-RKT 4-225/0,2 M | 59619 | Cordset
    Actuator/Sensor Cordset, Double ended
  7. RST 4-RKT 4-225/0,3 M | 11821 | Cordset
    RST 4-RKT 4-225/0,3 M | 11821 | Cordset
    Actuator/Sensor Cordset, Double ended M12 male to M12 female, 4 pole, cable length 0.3m
  8. RST 4-RKT 4-225/0,6 M | 11822 | Cordset
    RST 4-RKT 4-225/0,6 M | 11822 | Cordset
    Actuator/Sensor Cordset, Double ended M12 male to M12 female, 4 pole, cable length 0.6m, Halogen free, PUR Jacket
  9. RST 4-RKT 4-225/0.42 M | 87508 | Cordset
    RST 4-RKT 4-225/0.42 M | 87508 | Cordset
    Actuator/Sensor Cordset, Double ended M12 male 4 Pole to M12 Female 4 pole
  10. RST 4-RKT 4-225/1 M |11823 | Cordset
    RST 4-RKT 4-225/1 M |11823 | Cordset
    Actuator/Sensor Cordset, Double ended M12 male to M12 female, 4 pole, cable length 1m
  11. RST 4-RKT 4-225/1,5 M | 11824 | Cordset
    RST 4-RKT 4-225/1,5 M | 11824 | Cordset
    Actuator/Sensor Cordset, Double ended M12 male to M12 female, 4 pole, cable length 1.5m
  12. RST 4-RKT 4-225/12.7 M | 95114 | Cordset
    RST 4-RKT 4-225/12.7 M | 95114 | Cordset
    Actuator/Sensor Cordset, Double ended, M12 Male to M12 Female, 4 Pole, 12.7m
